Orlockâ„¢ 26.5mm Steel Plywood Rivet
Orlockâ„¢ 26.5mm Steel Plywood Rivet
SKU:ORL-9f2738
Securely fasten seats, frames, hinges, and more with the Orlockâ„¢ 26.5mm Steel Plywood Rivet for unparalleled strength and reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Orlockâ„¢ 26.5mm Steel Plywood Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Orlockâ„¢ 26.5mm Steel Plywood Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

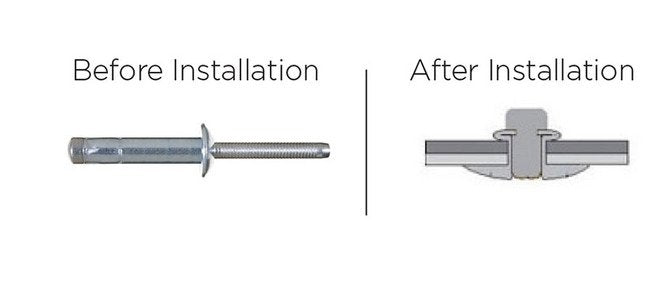

The Orlockâ„¢ 26.5mm Steel Plywood Protruding Head Rivet is a versatile and reliable structural fastener designed for interior seating, side frames, front frames, hinges, axes, and locking systems. With its double-locking system, high shear and tensile forces, and vibration-resistant joint, this rivet offers exceptional strength and security. Made of low carbon steel with zinc plated chromium finish, it meets stringent quality standards, making it an ideal choice for automotive applications like steering wheel mechanisms and seating installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock⢠with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.Automotive - SeatingThe Orlock⢠is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
26.5 mm | 1.043 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.260 to 0.268 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
18.8 mm | 0.740 in
Nominal Dimensions Minimum Grip Range
16.8 mm | 0.661 in
Nominal Forces Nominal Shear Force
1140 kgf | 2514 lbf
Nominal Forces Nominal Tensile Force
600 kgf | 1323 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
