Orlock™ 31.5mm Steel Plywood Rivet

Orlock™ 31.5mm Steel Plywood Rivet

ORL-b25f07

High-strength Orlock™ 31.5mm Steel Plywood Protruding Head Rivet for secure structural fastening in automotive applications.

$29.99
$29.99
Sale

Initiate Order

Orlock™ 31.5mm Steel Plywood Rivet

Orlock™ 31.5mm Steel Plywood Rivet

$29.99

Quantity: 1

Claim Your Seller Account

Orlock™ 31.5mm Steel Plywood Rivet

Orlock™ 31.5mm Steel Plywood Rivet

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

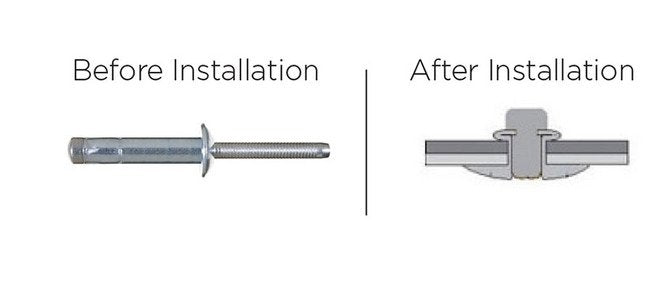

The Orlock™ 31.5mm Steel Plywood Protruding Head Rivet is a high-strength, vibration-resistant fastener designed for structural applications in automotive seating, side frames, front frames, hinges, axes, and locking systems. With a double-locking system, this rivet offers exceptional shear and tensile forces, providing a secure alternative to traditional fastening methods. Crafted from low carbon steel with a zinc-plated chromium finish, it meets rigorous quality standards, ensuring durability and reliability in demanding environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.Automotive - SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
31.5 mm | 1.240 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.260 to 0.268 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
22.8 mm | 0.898 in
Nominal Dimensions Minimum Grip Range
20.8 mm | 0.819 in
Nominal Forces Nominal Shear Force
1140 kgf | 2514 lbf
Nominal Forces Nominal Tensile Force
600 kgf | 1323 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
