Orlock™ 4.8mm Steel Large Head Rivet

Orlock™ 4.8mm Steel Large Head Rivet

ORL-674166

Secure, durable, and vibration-resistant 4.8mm steel rivet for heavy-duty applications. Meets safety and quality standards for automotive use.

$39.99
$39.99
Sale

Initiate Order

Orlock™ 4.8mm Steel Large Head Rivet

Orlock™ 4.8mm Steel Large Head Rivet

$39.99

Quantity: 1

Claim Your Seller Account

Orlock™ 4.8mm Steel Large Head Rivet

Orlock™ 4.8mm Steel Large Head Rivet

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

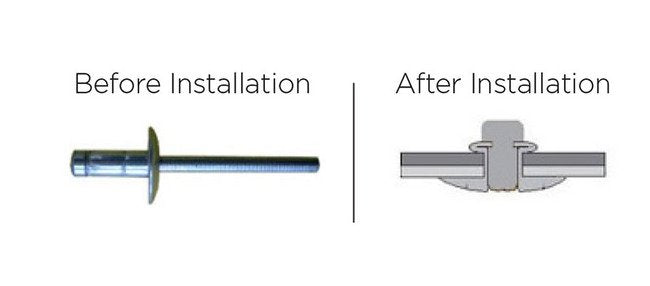

The Orlock™ 4.8mm Steel Large Head Rivet is a structural fastener designed for heavy-duty applications such as securing seats, frames, hinges, and locking systems. With a double-locking system, this rivet offers exceptional shear and tensile forces, providing a strong and vibration-resistant joint. Made of low carbon steel with zinc plating, it meets stringent durability requirements. Ideal for automotive seating and window frame applications, offering unparalleled safety and quality.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.Window FrameSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.
Nominal Dimensions Body Length
19.0 mm | 0.748 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
3.02 mm | 0.119 in
Nominal Dimensions Maximum Grip Range
13.5 mm | 0.531 in
Nominal Dimensions Minimum Grip Range
11.0 mm | 0.433 in
Nominal Forces Nominal Shear Force
640 kgf | 1408 lbf
Nominal Forces Nominal Tensile Force
360 kgf | 792 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
