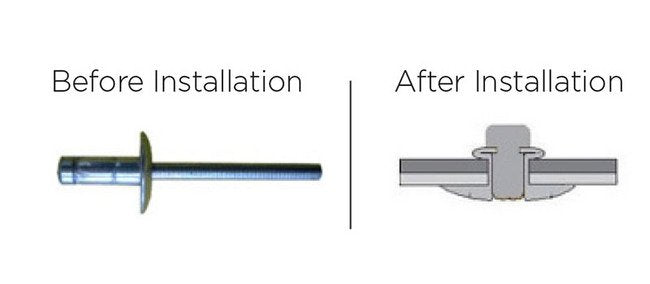

  • Orlock™ 6.4mm Steel X Large Head Rivet - Image 2
1 2
Ornit USA →

Orlock™ 6.4mm Steel X Large Head Rivet

Orlock™ 6.4mm Steel X Large Head Rivet

ORL-4e4fa5

Secure, durable Orlockâ„¢ 6.4mm structural rivet with double-locking system for maximum strength. Ideal for automotive applications.

$49.99
$49.99
Sale

Initiate Order

Orlock™ 6.4mm Steel X Large Head Rivet

Orlock™ 6.4mm Steel X Large Head Rivet

$49.99

Quantity: 1

Claim Your Seller Account

Orlock™ 6.4mm Steel X Large Head Rivet

Orlock™ 6.4mm Steel X Large Head Rivet

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlock™ 6.4mm Steel X Large Head Rivet is a top choice for structural applications, offering a double-locking system ensuring exceptional shear and tensile strength. Ideal for securing seats, side frames, front frames, hinges, and locking systems in various settings. Crafted from low carbon steel with a zinc-plated chromium (Cr) VI free finish, this rivet guarantees a strong, vibration-resistant joint. With a nominal shear force of 1140 kgf and a nominal tensile force of 660 kgf, it excels in demanding environments such as automotive steering wheel mechanisms. Ensure quality, durability, and peace of mind with Orlockâ„¢.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
19.0 mm | 0.748 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
14.8 mm | 0.583 in
Nominal Dimensions Minimum Grip Range
12.8 mm | 0.504 in
Nominal Forces Nominal Shear Force
1140 kgf | 2508 lbf
Nominal Forces Nominal Tensile Force
660 kgf | 1452 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
