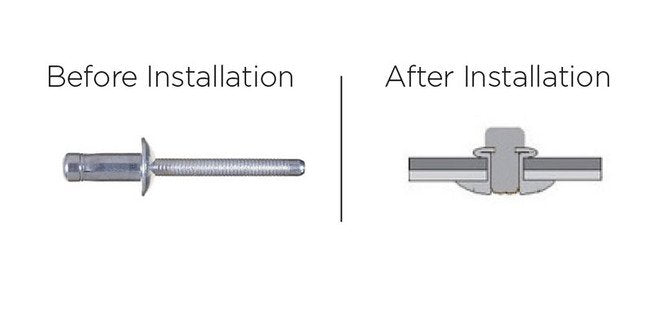

  • Orlock™ 9.8mm Protruding Head Steel Rivet - Image 2
1 2
Ornit USA →

Orlock™ 9.8mm Protruding Head Steel Rivet

Orlock™ 9.8mm Protruding Head Steel Rivet

ORL-f55a42

High-strength Orlockâ„¢ 9.8mm Steel Rivet with secure double locking system and vibration resistance. Ideal for rail transport applications.

$45.99
$45.99
Sale

Initiate Order

Orlock™ 9.8mm Protruding Head Steel Rivet

Orlock™ 9.8mm Protruding Head Steel Rivet

$45.99

Quantity: 1

Claim Your Seller Account

Orlock™ 9.8mm Protruding Head Steel Rivet

Orlock™ 9.8mm Protruding Head Steel Rivet

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlock™ 9.8mm Steel Protruding Head Rivet offers exceptional shear and tensile forces with a double locking system for secure, vibration-resistant joints. Made of low carbon steel with zinc-plated chromium VI free finish, this rivet is the perfect alternative to bolts and screws. With a nominal shear force of 2600 kgf and a nominal tensile force of 1300 kgf, it is ideal for rail transport applications, especially in train assembly lines.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Rail Transport Application
Trains - This extra-large diameter, Orlock™, structural rivet provides the perfect solution for train assembly lines. The rivet provides a highly secure, vibration-resistance joint and is the ideal alternative to nuts, bolts and screws.
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
9.8 mm | 3/8 in
Nominal Dimensions Drillhole Size
10.0 to 10.4 mm | 0.394 to 0.409 in
Nominal Dimensions Head Diameter
19.5 mm | 0.768 in
Nominal Dimensions Head Thickness
4.2 mm | 0.165 in
Nominal Dimensions Mandrel Diameter
6.00 mm | 0.236 in
Nominal Dimensions Maximum Grip Range
6.0 mm | 0.236 in
Nominal Dimensions Minimum Grip Range
3.0 mm | 3.0 in
Nominal Forces Nominal Shear Force
2600 kgf | 5720 lbf
Nominal Forces Nominal Tensile Force
1300 kgf | 2860 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
