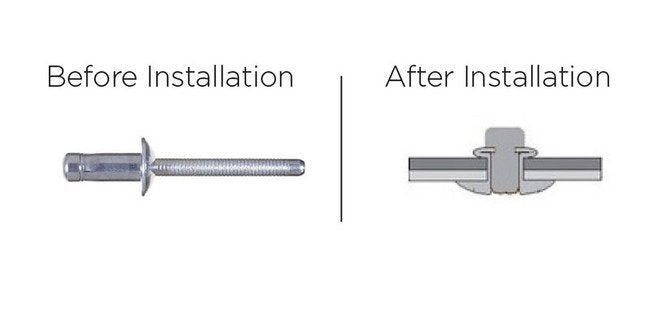

  • Orlock™ 9.8mm Steel Protruding Head Rivet - Image 2
1 2
Ornit USA →

Orlock™ 9.8mm Steel Protruding Head Rivet

Orlock™ 9.8mm Steel Protruding Head Rivet

ORL-02f8cb

High-strength Orlockâ„¢ 9.8mm Steel Rivet, perfect for secure, vibration-resistant joints in critical assemblies.

$49.00
$49.00
Sale

Initiate Order

Orlock™ 9.8mm Steel Protruding Head Rivet

Orlock™ 9.8mm Steel Protruding Head Rivet

$49.00

Quantity: 1

Claim Your Seller Account

Orlock™ 9.8mm Steel Protruding Head Rivet

Orlock™ 9.8mm Steel Protruding Head Rivet

$49.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlock™ 9.8mm Steel Protruding Head Rivet is a high-strength fastening solution ideal for securing joints in applications requiring high shear and tensile forces. Made of low carbon steel with zinc plated chromium finishes, this rivet offers exceptional vibration resistance. With a double locking system, it outperforms traditional nuts, bolts, and screws, making it perfect for critical assemblies like train manufacturing. The Orlockâ„¢ rivet ensures a secure and durable connection, meeting stringent industry standards for reliability and performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Rail Transport Application
Trains - This extra-large diameter, Orlock™, structural rivet provides the perfect solution for train assembly lines. The rivet provides a highly secure, vibration-resistance joint and is the ideal alternative to nuts, bolts and screws.
Nominal Dimensions Body Length
17.5 mm | 0.689 in
Nominal Dimensions Diameter
9.8 mm | 3/8 in
Nominal Dimensions Drillhole Size
10.0 to 10.4 mm | 0.394 to 0.409 in
Nominal Dimensions Head Diameter
19.5 mm | 0.768 in
Nominal Dimensions Head Thickness
4.2 mm | 0.165 in
Nominal Dimensions Mandrel Diameter
6.00 mm | 0.236 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.354 in
Nominal Dimensions Minimum Grip Range
6.0 mm | 6.0 in
Nominal Forces Nominal Shear Force
2600 kgf | 5720 lbf
Nominal Forces Nominal Tensile Force
1300 kgf | 2860 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
