Orlock⢠Stainless Steel 100 Degree Countersunk Head Rivet - 15.5mm Body Length
Orlock⢠Stainless Steel 100 Degree Countersunk Head Rivet - 15.5mm Body Length
SKU:ORL-d94f94
Durable Orlock⢠Stainless Steel Rivet with 15.5mm Body Length & 100 Degree Countersunk Head for secure joints in harsh climates. Ideal for renewable energy & trailers.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Orlock⢠Stainless Steel 100 Degree Countersunk Head Rivet - 15.5mm Body Length
$89.99
Quantity: 1
Claim Your Seller Account
Orlock⢠Stainless Steel 100 Degree Countersunk Head Rivet - 15.5mm Body Length
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

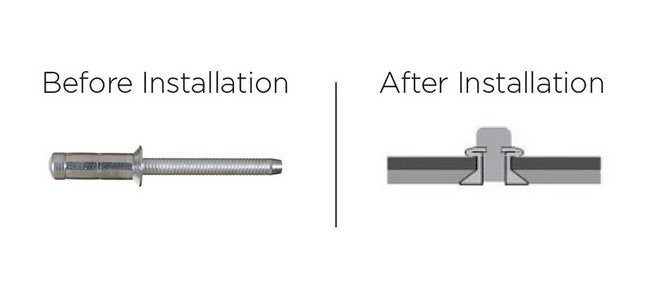

The Orlock⢠Stainless Steel 100 Degree Countersunk Head Rivet features a durable Austenitic Stainless Steel AISI 304 body and mandrel, providing a permanent, secure joint in severe climate conditions. With a 15.5mm body length and 100 degree countersunk head, this rivet is ideal for renewable energy and trailer applications. Offering a nominal shear force of 1300 kgf and tensile force of 1300 kgf, it ensures reliable performance. Compliant with industry standards, it's a trustworthy choice for critical projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Renewable Energy Application
Solar FramesThe Orlock⢠Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
15.5 mm | 0.610 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
9.8 mm | 0.386 in
Nominal Dimensions Minimum Grip Range
6.8 mm | 0.268 in
Nominal Forces Nominal Shear Force
1300 kgf | 2860 lbf
Nominal Forces Nominal Tensile Force
1300 kgf | 2867 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenic Stainless Steel American Iron and Steel Institute (AISI) 304
