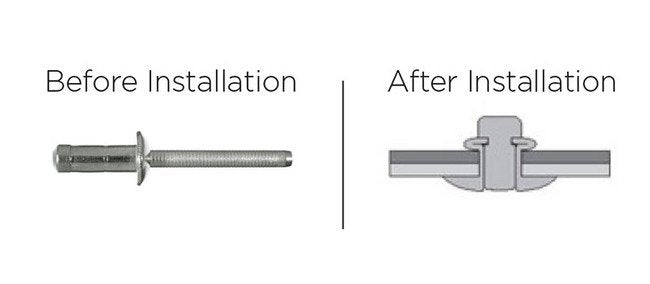

  • Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 11.5mm - Image 2
1 2
Ornit USA →

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 11.5mm

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 11.5mm

ORL-1af094

Premium Orlock™ Stainless Steel Rivet for durable and secure joints in extreme climates.

$89.99
$89.99
Sale

Initiate Order

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 11.5mm

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 11.5mm

$89.99

Quantity: 1

Claim Your Seller Account

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 11.5mm

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 11.5mm

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlock™ Stainless Steel Protruding Head Rivet, with a 4.8mm diameter and 11.5mm body length, is a premium fastening solution designed for extreme climate conditions. Engineered with Austenitic Stainless Steel AISI 304, it offers exceptional shear and tensile strength, with a grip range of 3.5mm to 6.0mm. Ideal for trailer manufacturing, this rivet ensures a permanent and secure joint, meeting the highest industry standards including possible customization with AISI 316 stainless steel.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Nominal Dimensions Body Length
11.5 mm | 0.453 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.201 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.2 mm | 0.087 in
Nominal Dimensions Mandrel Diameter
3.02 mm | 0.119 in
Nominal Dimensions Maximum Grip Range
6.0 mm | 0.236 in
Nominal Dimensions Minimum Grip Range
3.5 mm | 0.138 in
Nominal Forces Nominal Shear Force
700 kgf | 1544 lbf
Nominal Forces Nominal Tensile Force
510 kgf | 1125 lbf
Note Note
Can be Produced with Austenitic Stainless Steel A4 - AISI 316
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel 304
