Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 9.0mm

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 9.0mm

ORL-be4955

High-quality Orlockâ„¢ Stainless Steel Protruding Head Rivet with 4.8mm diameter and 9.0mm body length for secure joints in harsh conditions.

$59.99
$59.99
Sale

Initiate Order

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 9.0mm

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 9.0mm

$59.99

Quantity: 1

Claim Your Seller Account

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 9.0mm

Orlock™ Stainless Steel Protruding Head Rivet - 4.8mm x 9.0mm

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

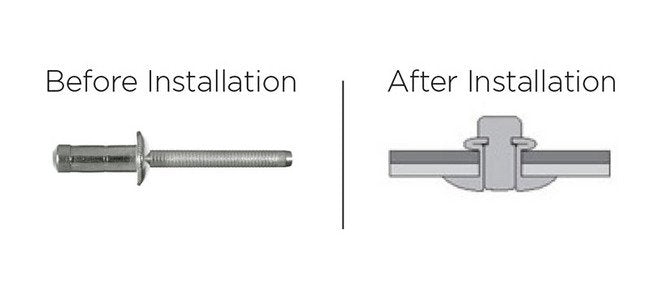

The Orlockâ„¢ Stainless Steel Protruding Head Rivet is designed for various trailer applications, offering a secure joint in extreme climates. Made from Austenitic Stainless Steel AISI 304, it boasts superior durability. With a 4.8mm diameter and 9.0mm body length, this rivet meets stringent performance standards for shear and tensile forces, ensuring reliability in demanding environments. Additionally, it can be custom-produced with AISI 316 for enhanced corrosion resistance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Nominal Dimensions Body Length
9.0 mm | 0.354 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.201 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.2 mm | 0.087 in
Nominal Dimensions Mandrel Diameter
3.02 mm | 0.119 in
Nominal Dimensions Maximum Grip Range
3.5 mm | 0.138 in
Nominal Dimensions Minimum Grip Range
1.5 mm | 0.059 in
Nominal Forces Nominal Shear Force
620 kgf | 1367 lbf
Nominal Forces Nominal Tensile Force
510 kgf | 1125 lbf
Note Note
Can be Produced with Austenitic Stainless Steel A4 - AISI 316
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel 304
