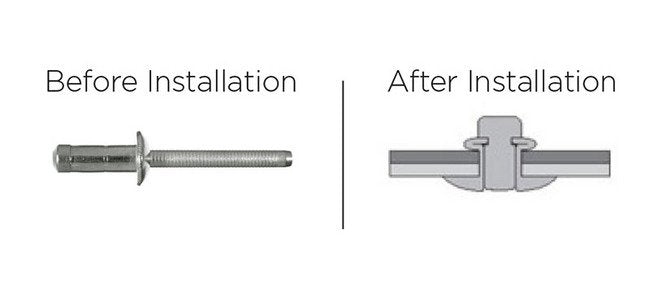

  • Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 16.5mm - Image 2
1 2
Ornit USA →

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 16.5mm

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 16.5mm

ORL-00e891

High-performance 6.4mm Stainless Steel Protruding Head Rivet for secure, durable joints in demanding environments.

$199.99
$199.99
Sale

Initiate Order

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 16.5mm

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 16.5mm

$199.99

Quantity: 1

Claim Your Seller Account

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 16.5mm

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 16.5mm

$199.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlockâ„¢ 6.4mm Stainless Steel Protruding Head Rivet is designed for exceptional performance in demanding environments. This rivet features an Austenitic Stainless Steel body with superior strength and corrosion resistance, perfect for applications requiring a permanent and secure joint. With a nominal shear force of 1480 kgf and a nominal tensile force of 850 kgf, it ensures reliable fastening. Ideal for renewable energy applications like solar frames, this rivet meets stringent industry standards and can be produced with AISI 316 stainless steel for added durability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Renewable Energy Application
Solar FramesThe Orlock™ Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
16.5 mm | 0.650 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.7 mm | 0.260 to 0.264 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
10.5 mm | 0.413 in
Nominal Dimensions Minimum Grip Range
7.0 mm | 0.276 in
Nominal Forces Nominal Shear Force
1480 kgf | 3263 lbf
Nominal Forces Nominal Tensile Force
850 kgf | 1874 lbf
Note Note
Can be Produced with Austenitic Stainless Steel A4 - AISI 316
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel 304
