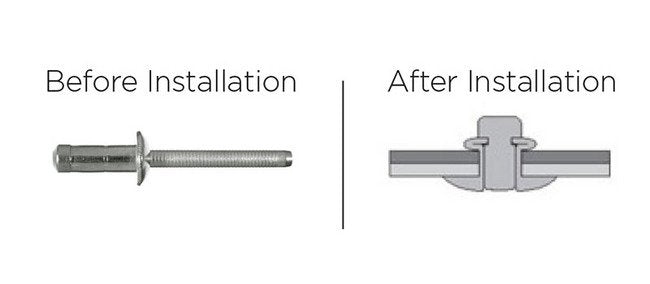

  • Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 22.5mm - Image 2
1 2
Ornit USA →

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 22.5mm

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 22.5mm

ORL-66d9d8

Premium Orlock™ Stainless Steel Protruding Head Rivet for durable joints in trailers and solar applications. Compliant with industry standards.

$29.99
$29.99
Sale

Initiate Order

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 22.5mm

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 22.5mm

$29.99

Quantity: 1

Claim Your Seller Account

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 22.5mm

Orlock™ Stainless Steel Protruding Head Rivet, 6.4mm x 22.5mm

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlock™ Stainless Steel Protruding Head Rivet is designed for reliable performance in demanding environments, commonly used in trailer manufacturing and solar applications globally. Built with high-quality Austenitic Stainless Steel AISI 304, it ensures a permanent and secure joint even in severe climate conditions. With a nominal shear force of 1480 kgf and a tensile force of 850 kgf, this rivet provides exceptional strength and durability. Compliant with Federal/DoD procurement standards and customizable with AISI 316 for enhanced corrosion resistance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Renewable Energy Application
Solar FramesThe Orlock™ Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
22.5 mm | 0.886 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.7 mm | 0.260 to 0.264 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
16.0 mm | 0.630 in
Nominal Dimensions Minimum Grip Range
13.0 mm | 0.512 in
Nominal Forces Nominal Shear Force
1480 kgf | 3263 lbf
Nominal Forces Nominal Tensile Force
850 kgf | 1874 lbf
Note Note
Can be Produced with Austenitic Stainless Steel A4 - AISI 316
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel 304
