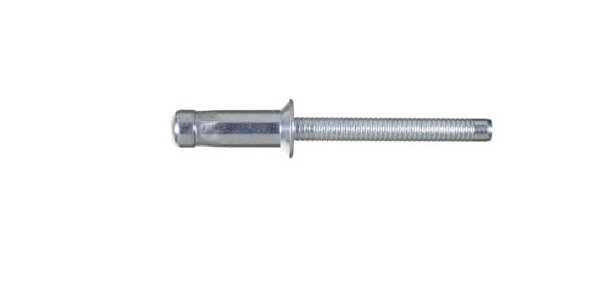

• Orlock™ Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500 - Image 1

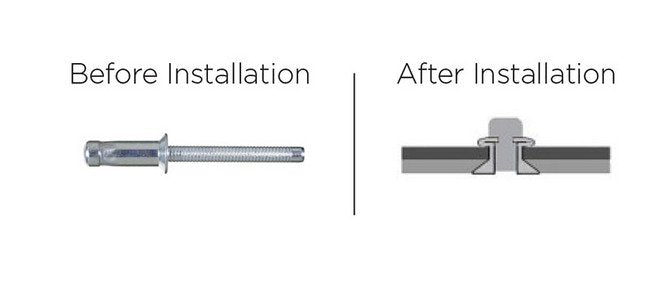

  • Orlock™ Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500 - Image 2
1 2
Ornit USA →

Orlock™ Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500

Orlock™ Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500

ORL-9960e6

Orlock™ Steel 100 Countersunk Rivet: High strength & vibration resistance for secure structural joints in automotive applications.

$59.99
$59.99
Sale

Initiate Order

Orlock™ Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500

Orlock™ Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500

$59.99

Quantity: 1

Claim Your Seller Account

Orlock™ Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500

Orlock™ Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlock™ Steel 100 Countersunk Head Rivet is a structural fastener engineered for high shear and tensile forces, offering a secure double-locking system for various applications like seating, frames, hinges, and more. Made of low carbon steel with zinc-plated chromium VI-free passivation, it provides a strong, vibration-resistant joint. With a nominal shear force of 600 kgf and a tensile force of 340 kgf, this rivet ensures durability and reliability in automotive and industrial settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration-resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
19.0 mm | 0.748 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
8.5 mm | 0.335 in
Nominal Dimensions Head Thickness
1.80 mm | 0.017 in
Nominal Dimensions Mandrel Diameter
3.02 mm | 0.119 in
Nominal Dimensions Maximum Grip Range
13.5 mm | 0.531 in
Nominal Dimensions Minimum Grip Range
11.0 mm | 0.433 in
Nominal Forces Nominal Shear Force
600 kgf | 1320 lbf
Nominal Forces Nominal Tensile Force
340 kgf | 748 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
