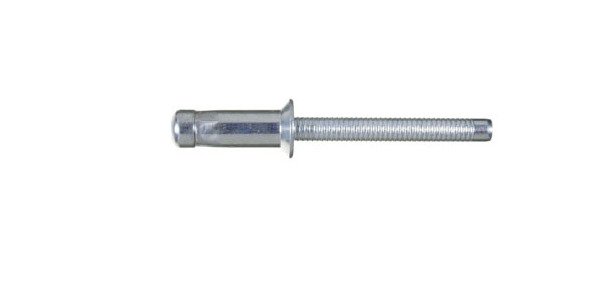

Orlock⢠Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500
Orlock⢠Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500
Orlock⢠Steel 100 Countersunk Rivet: High strength & vibration resistance for secure structural joints in automotive applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Orlock⢠Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500
$59.99
Quantity: 1
Claim Your Seller Account
Orlock⢠Steel 100 Countersunk Head Rivet, 4.8mm x 19mm, Pack of 2500
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

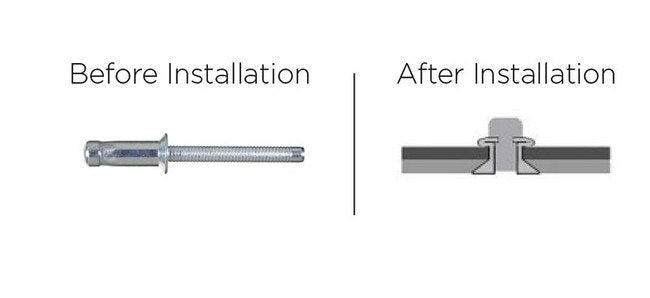

The Orlock⢠Steel 100 Countersunk Head Rivet is a structural fastener engineered for high shear and tensile forces, offering a secure double-locking system for various applications like seating, frames, hinges, and more. Made of low carbon steel with zinc-plated chromium VI-free passivation, it provides a strong, vibration-resistant joint. With a nominal shear force of 600 kgf and a tensile force of 340 kgf, this rivet ensures durability and reliability in automotive and industrial settings.
Product Specifications
Applications Automotive Application
SeatingThe Orlock⢠is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration-resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
19.0 mm | 0.748 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
8.5 mm | 0.335 in
Nominal Dimensions Head Thickness
1.80 mm | 0.017 in
Nominal Dimensions Mandrel Diameter
3.02 mm | 0.119 in
Nominal Dimensions Maximum Grip Range
13.5 mm | 0.531 in
Nominal Dimensions Minimum Grip Range
11.0 mm | 0.433 in
Nominal Forces Nominal Shear Force
600 kgf | 1320 lbf
Nominal Forces Nominal Tensile Force
340 kgf | 748 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock⢠| Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Carbon Steel
