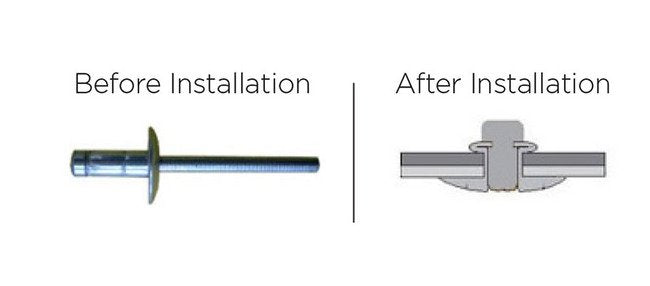

  • Orlock™ Steel Large Head Rivet - Image 2
1 2
Ornit USA →

Orlock™ Steel Large Head Rivet

Orlock™ Steel Large Head Rivet

ORL-f48aab

High-strength Orlockâ„¢ Steel Rivet for secure and vibration-resistant joints in automotive and renewable energy applications.

$29.99
$29.99
Sale

Initiate Order

Orlock™ Steel Large Head Rivet

Orlock™ Steel Large Head Rivet

$29.99

Quantity: 1

Claim Your Seller Account

Orlock™ Steel Large Head Rivet

Orlock™ Steel Large Head Rivet

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlockâ„¢ 6.4mm Diameter and 12.5mm Body Length Steel Large Head Rivet is a top choice for structural applications. With a double-locking system, it ensures a secure and vibration-resistant joint, ideal for seats, side frames, front frames, hinges, axes, and locking systems. Crafted from low carbon steel with a zinc-plated chromium finish, it meets high shear and tensile force requirements. Trusted in automotive steering wheel mechanisms and renewable energy solar frames, this rivet guarantees lasting performance in various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Applications Renewable Energy Application
Solar FramesThe Orlock™ Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
12.5 mm | 0.492 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
16.3 mm | 0.642 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
6.8 mm | 0.268 in
Nominal Dimensions Minimum Grip Range
4.8 mm | 0.189 in
Nominal Forces Nominal Shear Force
1040 kgf | 2288 lbf
Nominal Forces Nominal Tensile Force
660 kgf | 1452 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
