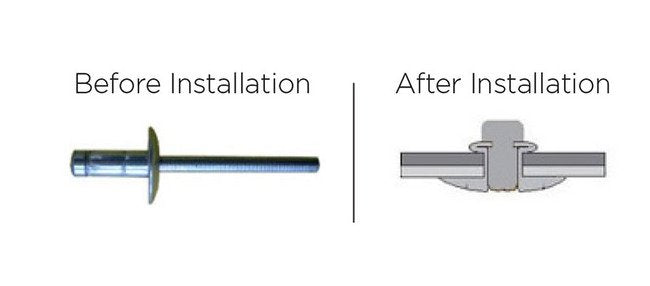

  • Orlock™ Steel Large Head Rivet - 4.8mm Diameter - Image 2
1 2
Ornit USA →

Orlock™ Steel Large Head Rivet - 4.8mm Diameter

Orlock™ Steel Large Head Rivet - 4.8mm Diameter

ORL-ae187c

High-strength steel rivet with double-locking system for secure and vibration-resistant joints.

$39.99
$39.99
Sale

Initiate Order

Orlock™ Steel Large Head Rivet - 4.8mm Diameter

Orlock™ Steel Large Head Rivet - 4.8mm Diameter

$39.99

Quantity: 1

Claim Your Seller Account

Orlock™ Steel Large Head Rivet - 4.8mm Diameter

Orlock™ Steel Large Head Rivet - 4.8mm Diameter

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlockâ„¢ Steel Large Head Rivet is a high-strength structural fastener designed for securing seats, trailer frames, front frames, hinges, axes, and locking systems. Featuring a double-locking system, this rivet offers exceptional shear and tensile forces, providing a secure and vibration-resistant joint. Made from low carbon steel with a zinc-plated chromium finish, it meets stringent durability standards and is an ideal alternative to nuts, bolts, and screws.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.Window FrameSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.
Nominal Dimensions Body Length
11.5 mm | 0.453 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
3.02 mm | 0.119 in
Nominal Dimensions Maximum Grip Range
6.0 mm | 0.236 in
Nominal Dimensions Minimum Grip Range
3.5 mm | 0.138 in
Nominal Forces Nominal Shear Force
570 kgf | 1254 lbf
Nominal Forces Nominal Tensile Force
360 kgf | 792 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
