Orlock™ Steel Large Head Rivet - 4.8mm x 14.0mm

Orlock™ Steel Large Head Rivet - 4.8mm x 14.0mm

ORL-8f201f

Secure your structures with the Orlockâ„¢ Steel Rivet - strong, vibration-resistant, and versatile.

$59.99
$59.99
Sale

Initiate Order

Orlock™ Steel Large Head Rivet - 4.8mm x 14.0mm

Orlock™ Steel Large Head Rivet - 4.8mm x 14.0mm

$59.99

Quantity: 1

Claim Your Seller Account

Orlock™ Steel Large Head Rivet - 4.8mm x 14.0mm

Orlock™ Steel Large Head Rivet - 4.8mm x 14.0mm

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

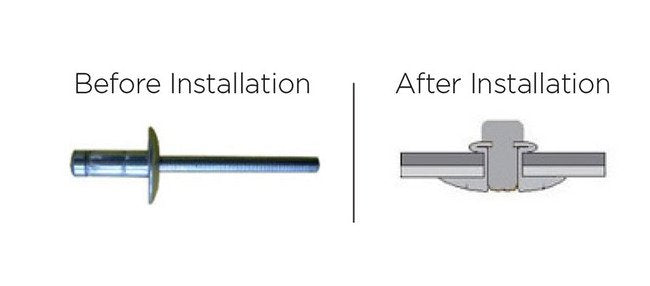

The Orlock™ Steel Large Head Rivet is a versatile and durable fastening solution suitable for various applications. Constructed from low carbon steel with a zinc-plated chromium finish, this rivet features a unique double-locking system that ensures exceptional shear and tensile forces. With a head style of large diameter and a mandrel diameter of 3.02mm, it provides a secure and vibration-resistant joint. Ideal for automotive applications like seating and window frames, this rivet offers peace of mind with its high-quality construction.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.Window FrameSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.
Nominal Dimensions Body Length
14.0 mm | 0.551 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
3.02 mm | 0.119 in
Nominal Dimensions Maximum Grip Range
8.5 mm | 0.335 in
Nominal Dimensions Minimum Grip Range
6.0 mm | 0.236 in
Nominal Forces Nominal Shear Force
640 kgf | 1408 lbf
Nominal Forces Nominal Tensile Force
360 kgf | 792 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
