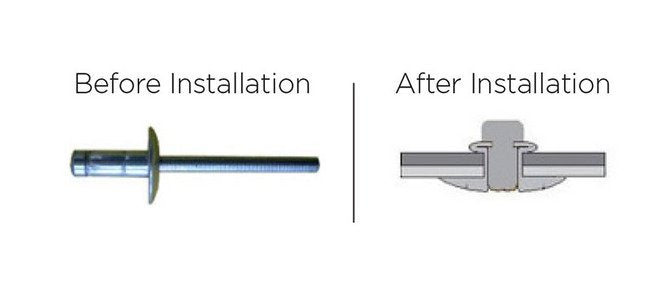

  • Orlock™ Steel Large Head Rivet, 6.4mm x 22.5mm - Image 2
1 2
Ornit USA →

Orlock™ Steel Large Head Rivet, 6.4mm x 22.5mm

Orlock™ Steel Large Head Rivet, 6.4mm x 22.5mm

ORL-ca5084

Securely fasten seats, frames, and systems with the Orlockâ„¢ Steel Large Head Rivet - unmatched strength and vibration resistance.

$34.99
$34.99
Sale

Initiate Order

Orlock™ Steel Large Head Rivet, 6.4mm x 22.5mm

Orlock™ Steel Large Head Rivet, 6.4mm x 22.5mm

$34.99

Quantity: 1

Claim Your Seller Account

Orlock™ Steel Large Head Rivet, 6.4mm x 22.5mm

Orlock™ Steel Large Head Rivet, 6.4mm x 22.5mm

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlockâ„¢ Steel Large Head Rivet is a superior structural fastener designed for high shear and tensile forces. Featuring a double-locking system, this rivet ensures exceptional vibration resistance, making it ideal for securing seats, frames, hinges, and locking systems with peace of mind. Made of low carbon steel with a zinc plated chromium finish, it meets stringent quality and durability standards. Trusted in automotive steering, solar energy applications, and more.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Applications Renewable Energy Application
Solar FramesThe Orlock™ Stainless Steel is commonly used in a variety of solar applications worldwide. This stainless steel rivet provides a permanent, secure joint in the most severe climate conditions. Also available in 316.
Nominal Dimensions Body Length
22.5 mm | 0.886 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
16.3 mm | 0.642 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
16.8 mm | 0.661 in
Nominal Dimensions Minimum Grip Range
14.8 mm | 0.583 in
Nominal Forces Nominal Shear Force
1140 kgf | 2508 lbf
Nominal Forces Nominal Tensile Force
660 kgf | 1452 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
