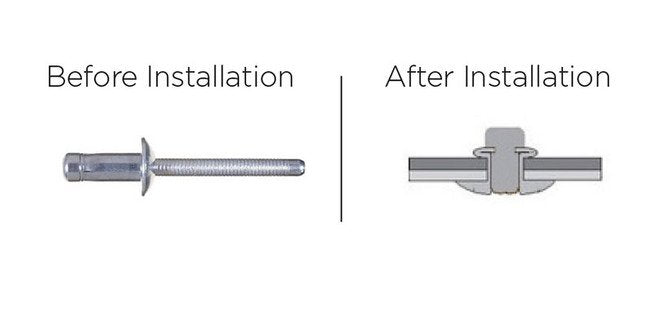

  • Orlock™ Steel Protruding Head Rivet - 7.8mm x 19.5mm - Image 2
1 2
Ornit USA →

Orlock™ Steel Protruding Head Rivet - 7.8mm x 19.5mm

Orlock™ Steel Protruding Head Rivet - 7.8mm x 19.5mm

ORL-172a9c

High-strength Orlockâ„¢ Steel Protruding Head Rivet - Ideal for secure, vibration-resistant joints. Nominal shear force: 1600 kgf, tensile force: 930 kgf.

$29.99
$29.99
Sale

Initiate Order

Orlock™ Steel Protruding Head Rivet - 7.8mm x 19.5mm

Orlock™ Steel Protruding Head Rivet - 7.8mm x 19.5mm

$29.99

Quantity: 1

Claim Your Seller Account

Orlock™ Steel Protruding Head Rivet - 7.8mm x 19.5mm

Orlock™ Steel Protruding Head Rivet - 7.8mm x 19.5mm

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlock™ Steel Protruding Head Rivet is a versatile structural fastener designed for robust applications in various industries. Crafted from low carbon steel with zinc-plated chromium (Cr) VI free finish, it provides exceptional shear and tensile forces, ensuring secure and vibration-resistant joints. With a double-locking system and nominal forces of 1600 kgf shear and 930 kgf tensile, this rivet offers reliability and durability. Suitable for interior, chassis, frame, hinges, and rail transport applications, it surpasses industry standards for safety and performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Rail Transport Application
Trains - This extra-large diameter, Orlock™, structural rivet provides the perfect solution for train assembly lines. The rivet provides a highly secure, vibration-resistance joint and is the ideal alternative to nuts, bolts and screws.
Nominal Dimensions Body Length
19.5 mm | 0.768 in
Nominal Dimensions Diameter
7.8 mm | 5/16 in
Nominal Dimensions Drillhole Size
8.0 to 8.3 mm | 0.314 to 0.326 in
Nominal Dimensions Head Diameter
16 mm | 0.630 in
Nominal Dimensions Head Thickness
3.7 mm | 0.146 in
Nominal Dimensions Mandrel Diameter
5.12 mm | 0.202 in
Nominal Dimensions Maximum Grip Range
13.0 mm | 0.512 in
Nominal Dimensions Minimum Grip Range
10.0 mm | 10.0 in
Nominal Forces Nominal Shear Force
1600 kgf | 3520 lbf
Nominal Forces Nominal Tensile Force
930 kgf | 2046 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
