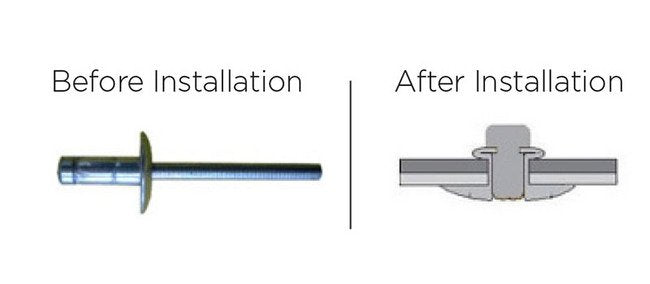

  • Orlock™ Steel X Large Head Rivet 6.4mm x 18.5mm - Image 2
1 2
Ornit USA →

Orlock™ Steel X Large Head Rivet 6.4mm x 18.5mm

Orlock™ Steel X Large Head Rivet 6.4mm x 18.5mm

ORL-003f9a

Premium Orlockâ„¢ Steel X Large Head Rivet for high shear & tensile forces in automotive applications. Strong, vibration-resistant joint.

$45.99
$45.99
Sale

Initiate Order

Orlock™ Steel X Large Head Rivet 6.4mm x 18.5mm

Orlock™ Steel X Large Head Rivet 6.4mm x 18.5mm

$45.99

Quantity: 1

Claim Your Seller Account

Orlock™ Steel X Large Head Rivet 6.4mm x 18.5mm

Orlock™ Steel X Large Head Rivet 6.4mm x 18.5mm

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlockâ„¢ Steel X Large Head Rivet is a premium structural fastener designed for high shear and tensile forces, ideal for securing seats, trailer frames, and more. Its double-locking system ensures a strong, vibration-resistant joint, surpassing traditional nuts, bolts, and screws. Made of Low Carbon Steel with Zinc Plated Chromium finish, it offers exceptional grip range and nominal forces of 1140 kgf shear and 660 kgf tensile. Trusted in automotive applications like steering wheel mechanisms, this rivet provides unmatched security and peace of mind to drivers globally.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
18.5 mm | 0.728 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
19.0 mm | 0.748 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
12.8 mm | 0.504 in
Nominal Dimensions Minimum Grip Range
10.8 mm | 0.425 in
Nominal Forces Nominal Shear Force
1140 kgf | 2508 lbf
Nominal Forces Nominal Tensile Force
660 kgf | 1452 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
