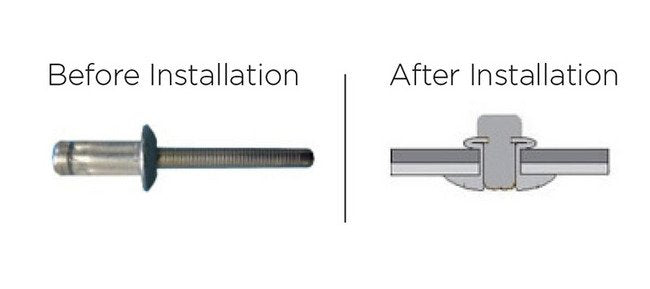

  • Orlock™ X-Large Head Rivet - 40.5mm - Image 2
1 2
Ornit USA →

Orlock™ X-Large Head Rivet - 40.5mm

Orlock™ X-Large Head Rivet - 40.5mm

ORL-2d52a1

Secure, durable Orlockâ„¢ X-Large Head Rivet for high-shear applications. Double-locking system ensures a strong, vibration-resistant joint. Ideal for automotive use.

$45.99
$45.99
Sale

Initiate Order

Orlock™ X-Large Head Rivet - 40.5mm

Orlock™ X-Large Head Rivet - 40.5mm

$45.99

Quantity: 1

Claim Your Seller Account

Orlock™ X-Large Head Rivet - 40.5mm

Orlock™ X-Large Head Rivet - 40.5mm

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlockâ„¢ X-Large Head Rivet is a top choice for structural applications, providing exceptional shear and tensile forces. With a double-locking system for maximum security, this rivet ensures a strong, vibration-resistant joint. Made of low carbon steel with Zinc Plated Chromium finish, it meets stringent quality standards and is ideal for automotive steering wheel mechanisms and seating installations.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.Automotive - SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
40.5 mm | 1.594 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.260 to 0.268 in
Nominal Dimensions Head Diameter
19.0 mm | 0.748 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
30.8 mm | 1.213 in
Nominal Dimensions Minimum Grip Range
28.8 mm | 1.134 in
Nominal Forces Nominal Shear Force
1140 kgf | 2514 lbf
Nominal Forces Nominal Tensile Force
600 kgf | 1323 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
