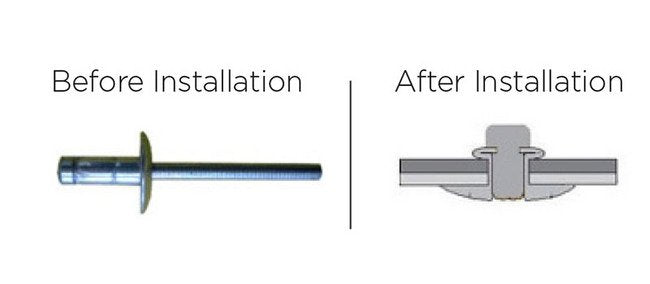

  • Orlock™ X-Large Head Steel Rivet 6.4mm x 24.5mm - Image 2
1 2
Ornit USA →

Orlock™ X-Large Head Steel Rivet 6.4mm x 24.5mm

Orlock™ X-Large Head Steel Rivet 6.4mm x 24.5mm

ORL-bc7070

Secure seats, frames, hinges, and locks with precision and durability using the Orlockâ„¢ X-Large Head Steel Rivet.

$45.99
$45.99
Sale

Initiate Order

Orlock™ X-Large Head Steel Rivet 6.4mm x 24.5mm

Orlock™ X-Large Head Steel Rivet 6.4mm x 24.5mm

$45.99

Quantity: 1

Claim Your Seller Account

Orlock™ X-Large Head Steel Rivet 6.4mm x 24.5mm

Orlock™ X-Large Head Steel Rivet 6.4mm x 24.5mm

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Orlockâ„¢ X-Large Head Steel Rivet is a versatile structural fastener designed for high shear and tensile forces, making it ideal for various applications such as securing seats, trailer frames, front frames, hinges, and locking systems. With a double-locking system and vibration-resistant joint, this rivet ensures maximum security and durability. Crafted from low carbon steel with zinc-plated chromium finish, the Orlockâ„¢ meets quality standards and offers peace of mind to drivers worldwide. Its precise dimensions and nominal forces make it a reliable choice for automotive and industrial use.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Automotive Application
Steering Wheel MechanismSafety, and quality products are part of Ornit's DNA. The Orlock™ with its unique capabilities, and featuring a double-locking system was selected to provide peace of mind to countless drivers worldwide.SeatingThe Orlock™ is a structural fastener, featuring a unique double-locking system that enables the rivet to safely secure the seats.
Nominal Dimensions Body Length
24.5 mm | 0.965 in
Nominal Dimensions Diameter
6.4 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.6 to 6.8 mm | 0.259 to 0.267 in
Nominal Dimensions Head Diameter
19.0 mm | 0.748 in
Nominal Dimensions Head Thickness
3.0 mm | 0.118 in
Nominal Dimensions Mandrel Diameter
4.17 mm | 0.164 in
Nominal Dimensions Maximum Grip Range
18.8 mm | 0.740 in
Nominal Dimensions Minimum Grip Range
16.8 mm | 0.661 in
Nominal Forces Nominal Shear Force
1140 kgf | 2508 lbf
Nominal Forces Nominal Tensile Force
660 kgf | 1452 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Orlock™ | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
