Ornilock 16.7mm Stainless Steel Countersunk Head Rivet
Ornilock 16.7mm Stainless Steel Countersunk Head Rivet
SKU:ORN-6cccd9
High-quality Ornilock 16.7mm Stainless Steel Rivet for structural applications with exceptional hole-fill capabilities and internal-locking system.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock 16.7mm Stainless Steel Countersunk Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock 16.7mm Stainless Steel Countersunk Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

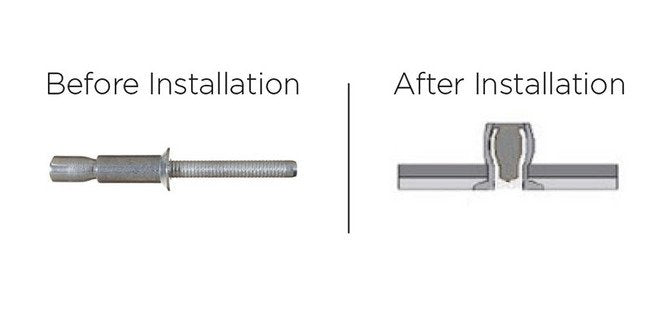

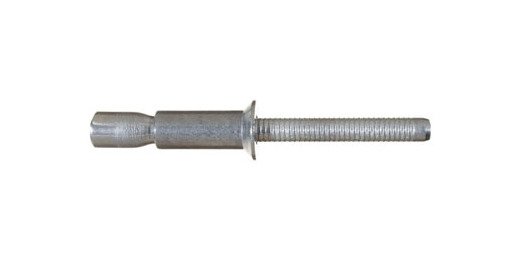

The Ornilock Stainless Steel 16.7mm Countersunk Head Rivet is a high-quality fastener designed for structural applications in renewable energy systems like solar frames. With exceptional hole-fill capabilities and an internal-locking system, this rivet is perfect for oversized, irregular, or misaligned holes. Made of AISI 304 stainless steel, it offers superior strength and durability, meeting stringent federal procurement standards and industry-specific certifications.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
16.7 mm | 0.657 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
12.1 mm | 0.476 in
Nominal Dimensions Minimum Grip Range
4.1 mm | 0.161 in
Nominal Forces Nominal Shear Force
1150 kgf | 2530 lbf
Nominal Forces Nominal Tensile Force
910 kgf | 2002 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
