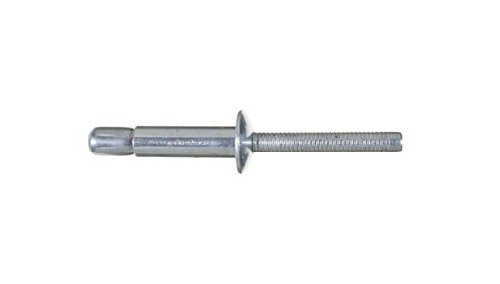

Ornilock 4.8mm Steel Protruding Head Rivet
Ornilock 4.8mm Steel Protruding Head Rivet
SKU:ORN-98c54c
High-quality 4.8mm steel rivet for structural applications with exceptional grip and strength.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornilock 4.8mm Steel Protruding Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Ornilock 4.8mm Steel Protruding Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

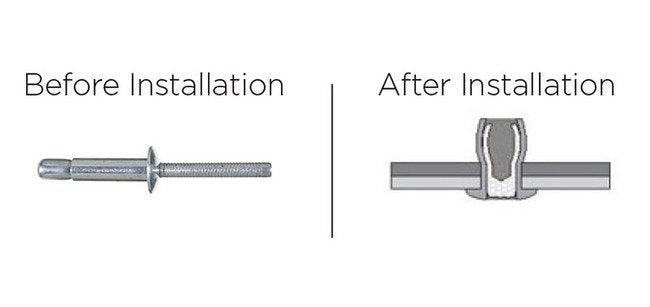

The Ornilock 4.8mm Steel Protruding Head Rivet is an exceptional fastening solution designed for structural applications. Made of low carbon steel with zinc-plated chromium VI-free passivation, this rivet ensures durability and corrosion resistance. With a diameter of 4.8mm and a body length of 14.5mm, it offers a minimum grip range of 5.4mm and a maximum grip range of 11.1mm, providing a secure and tight fit. This rivet boasts a nominal shear force of 630 kgf and a nominal tensile force of 545 kgf, making it ideal for heavy-duty use. The internal-locking system and protruding head design make it perfect for oversized, irregular, or misaligned holes, ensuring a flush break and reliable fastening.
Product Specifications
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.193 to 0.201 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
5.4 mm | 0.213 in
Nominal Forces Nominal Shear Force
630 kgf | 1386 lbf
Nominal Forces Nominal Tensile Force
545 kgf | 1199 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
