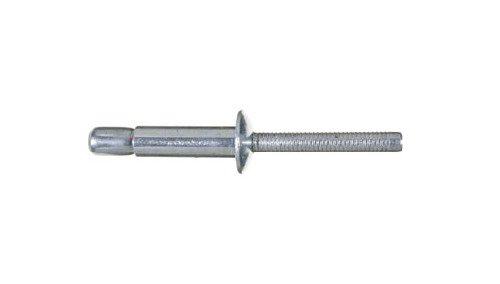

Ornilock 4.8mm Steel Protruding Head Rivet
Ornilock 4.8mm Steel Protruding Head Rivet
SKU:ORN-1794e7
High-quality 4.8mm Steel Protruding Head Rivet with internal-locking system for structural applications. Ideal for oversized, irregular, or misaligned holes. Nominal forces: 630 kgf shear, 545 kgf tensile.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock 4.8mm Steel Protruding Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock 4.8mm Steel Protruding Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

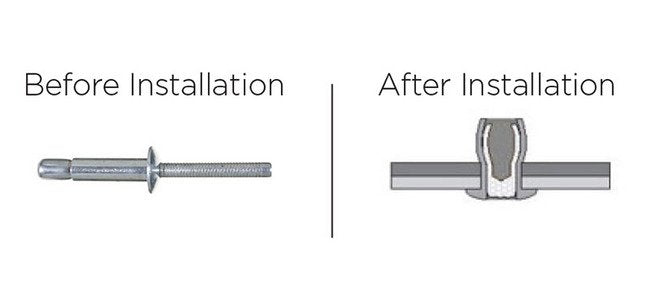

The Ornilock 4.8mm Steel Protruding Head Rivet is a high-quality fastening solution designed for structural applications. With its internal-locking system and excellent hole-fill capabilities, this rivet is ideal for oversized, irregular, or misaligned holes in side frames, front frames, hinges, axis, and locking systems. Made of low carbon steel with zinc-plated chromium VI free passivation, this rivet offers superior strength and corrosion resistance. It features a 10.5mm body length, 4.8mm diameter, and can withstand a nominal shear force of 630 kgf and nominal tensile force of 545 kgf.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
10.5 mm | 0.413 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.193 to 0.201 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
6.9 mm | 0.272 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
630 kgf | 1386 lbf
Nominal Forces Nominal Tensile Force
545 kgf | 1199 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
