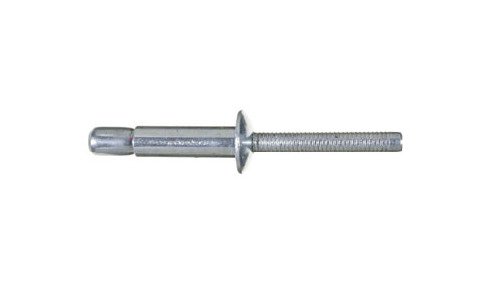

Ornilock 6.5mm Steel Protruding Head Rivet
Ornilock 6.5mm Steel Protruding Head Rivet
SKU:ORN-888e4b
High-quality 6.5mm steel protruding head rivet with exceptional strength, ideal for structural applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornilock 6.5mm Steel Protruding Head Rivet
$45.99
Quantity: 1
Claim Your Seller Account
Ornilock 6.5mm Steel Protruding Head Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

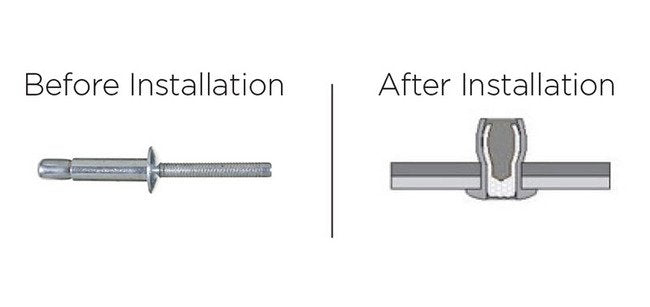

The Ornilock 6.5mm Steel Protruding Head Rivet is a high-quality fastening solution designed for structural applications. With excellent hole-fill capabilities, this rivet is ideal for oversized, irregular, or misaligned holes in side frames, front frames, hinges, axes, and locking systems. Made of low carbon steel with zinc-plated chromium VI free passivation, it offers superior strength and durability. The internal-locking system ensures a secure fit, while the flush break design enhances aesthetics. With a nominal shear force of 1250 kgf and a nominal tensile force of 1000 kgf, this rivet delivers reliable performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
27.0 mm | 10.063 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
22.5 mm | 0.886 in
Nominal Dimensions Minimum Grip Range
8.9 mm | 0.350 in
Nominal Forces Nominal Shear Force
1250 kgf | 2750 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2200 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
