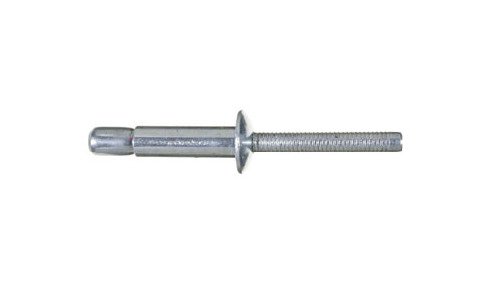

Ornilock 6.5mm Steel Protruding Head Rivet
Ornilock 6.5mm Steel Protruding Head Rivet
SKU:ORN-6d36ab
Versatile Ornilock 6.5mm Steel Protruding Head Rivet for secure and durable structural fastening.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock 6.5mm Steel Protruding Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock 6.5mm Steel Protruding Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

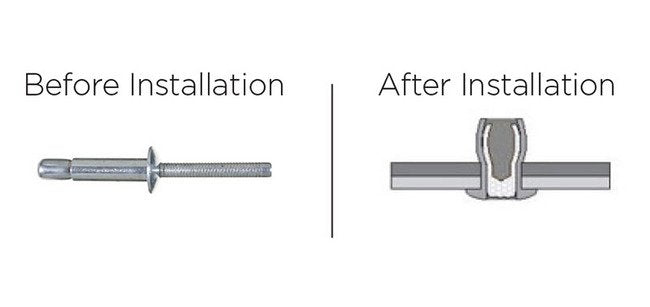

The Ornilock 6.5mm Steel Protruding Head Rivet is a versatile fastener designed for structural applications, offering exceptional hole-fill capabilities for oversized or misaligned holes. Crafted with low carbon steel, zinc-plated chromium finish, and a medium carbon steel mandrel, it ensures durability and corrosion resistance. With a protruding head style and precise dimensions, including a 27.0mm body length, this rivet provides a secure grip range from 15.9mm to 22.5mm. It withstands nominal shear force of 1250 kgf and tensile force of 1000 kgf, making it ideal for various assemblies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
27.0 mm | 10.063 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
22.5 mm | 0.886 in
Nominal Dimensions Minimum Grip Range
15.9 mm | 0.626 in
Nominal Forces Nominal Shear Force
1250 kgf | 2750 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2200 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
