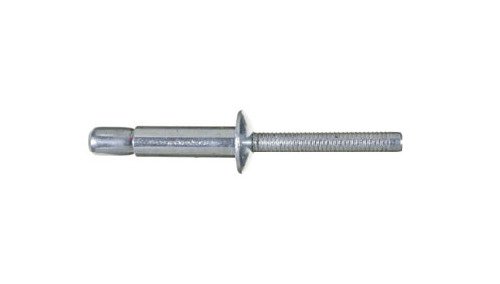

Ornilock 6.5mm Steel Protruding Head Rivet
Ornilock 6.5mm Steel Protruding Head Rivet
SKU:ORN-ffb22d
Durable and versatile 6.5mm steel rivet for secure structural fastening.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock 6.5mm Steel Protruding Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock 6.5mm Steel Protruding Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

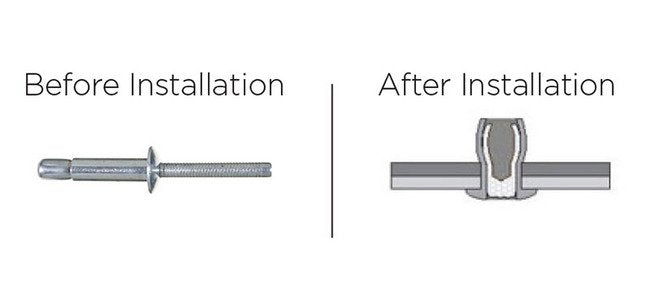

Meet your structural fastening needs with the Ornilock 6.5mm Diameter Rivet. Crafted from Low Carbon Steel with Zinc Plated Chromium VI Free Passivation, this rivet ensures durability and corrosion resistance. With a 20.5mm body length and excellent hole-fill capabilities, it's ideal for oversized, irregular, or misaligned holes. Achieve secure fastening with a nominal shear force of 1250 kgf and a tensile force of 1000 kgf.
Product Specifications
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
1250 kgf | 2750 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2200 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
