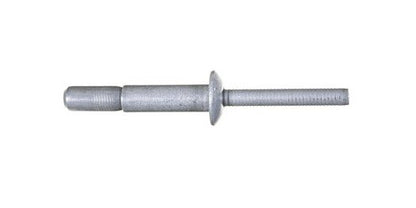

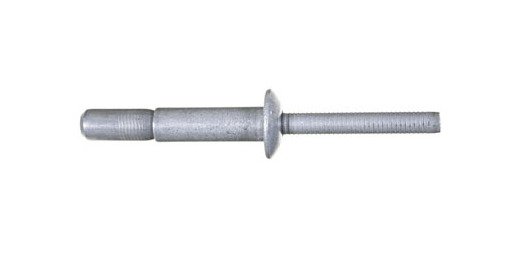

Ornilock 7.8mm Aluminum Protruding Head Rivet
Ornilock 7.8mm Aluminum Protruding Head Rivet
SKU:ORN-324421
High-performance Ornilock Aluminum Rivet for secure and efficient fastening in structural applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock 7.8mm Aluminum Protruding Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock 7.8mm Aluminum Protruding Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

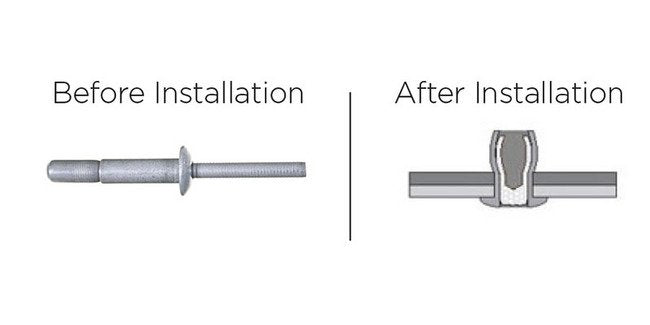

The Ornilock 7.8mm Aluminum Protruding Head Rivet is engineered for exceptional hole-fill capabilities, ideal for oversized or irregular holes. With a flush break and internal-locking system, it ensures secure fastening in various applications such as solar frames. This multi-grip rivet meets high shear and tensile force requirements, offering reliability and durability in structural assemblies.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
21.0 mm | 0.827 in
Nominal Dimensions Diameter
7.8 mm | 5/16 in
Nominal Dimensions Drillhole Size
8.0 to 8.3 mm | 0.315 to 0.327 in
Nominal Dimensions Head Diameter
16 mm | 0.630 in
Nominal Dimensions Head Thickness
3.5 mm | 0.140 in
Nominal Dimensions Mandrel Diameter
5.05 mm | 0.200 in
Nominal Dimensions Maximum Grip Range
14.5 mm | 0.571 in
Nominal Dimensions Minimum Grip Range
4.5 mm | 0.177 in
Nominal Forces Nominal Shear Force
880 kgf | 1936 lbf
Nominal Forces Nominal Tensile Force
530 kgf | 1166 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
