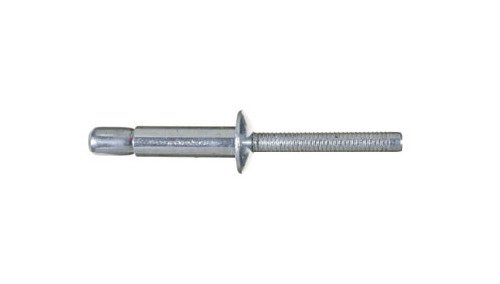

Ornilock 7.8mm Diameter Steel Protruding Head Rivet
Ornilock 7.8mm Diameter Steel Protruding Head Rivet
SKU:ORN-6c16ea
High-quality 7.8mm Steel Protruding Head Rivet for structural applications. Durable, corrosion-resistant, and ideal for oversized holes. Nominal shear force: 1600 kgf.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornilock 7.8mm Diameter Steel Protruding Head Rivet
$45.99
Quantity: 1
Claim Your Seller Account
Ornilock 7.8mm Diameter Steel Protruding Head Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

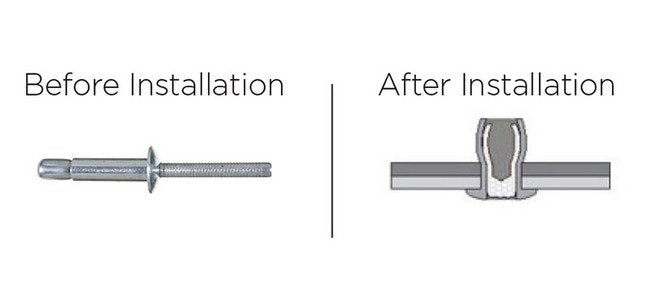

The Ornilock 7.8mm Diameter Steel Protruding Head Rivet is a high-quality fastening solution designed for structural applications. Constructed with low carbon steel and zinc-plated chromium VI-free passivation, this rivet ensures durability and corrosion resistance. With a protruding head style and a 30.0mm body length, it offers exceptional hole-fill capabilities and an internal-locking system ideal for oversized, irregular, or misaligned holes. With a nominal shear force of 1600 kgf and a nominal tensile force of 1000 kgf, this rivet provides reliable and secure fastening. Perfect for Solar Frames and other renewable energy applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
30.0 mm | 10.181 in
Nominal Dimensions Diameter
7.8 mm | 5/16 in
Nominal Dimensions Drillhole Size
8.0 to 8.3 mm | 0.315 to 0.327 in
Nominal Dimensions Head Diameter
16 mm | 0.630 in
Nominal Dimensions Head Thickness
3.5 mm | 0.140 in
Nominal Dimensions Mandrel Diameter
5.10 mm | 0.200 in
Nominal Dimensions Maximum Grip Range
23.0 mm | 0.906 in
Nominal Dimensions Minimum Grip Range
14.0 mm | 0.551 in
Nominal Forces Nominal Shear Force
1600 kgf | 3520 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2205 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
