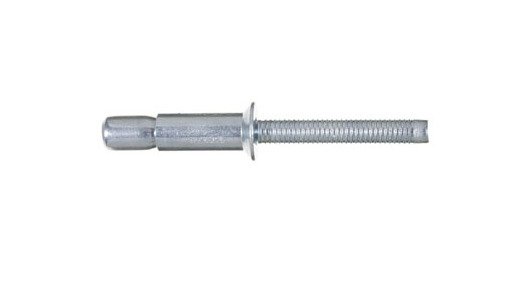

Ornilock Aluminum 16.7mm 100 Degree Countersunk Head Rivet
Ornilock Aluminum 16.7mm 100 Degree Countersunk Head Rivet
SKU:ORN-b27fbe
Versatile Ornilock 16.7mm Aluminum Rivet for secure fastening. Ideal for oversized, irregular, or misaligned holes. Flush break design.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornilock Aluminum 16.7mm 100 Degree Countersunk Head Rivet
$45.99
Quantity: 1
Claim Your Seller Account
Ornilock Aluminum 16.7mm 100 Degree Countersunk Head Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

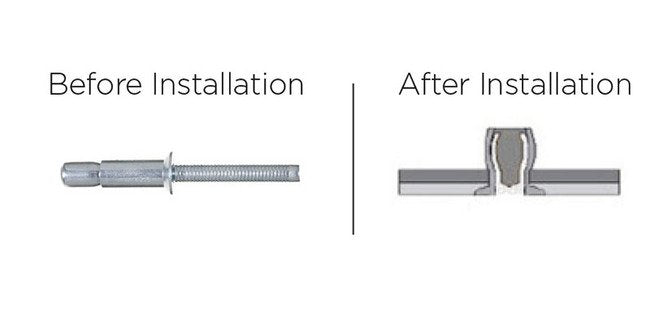

The Ornilock Aluminum 16.7mm 100 Degree Countersunk Head Rivet is a versatile and reliable fastening solution suitable for various applications. With a body length of 16.7mm and a flush break design, this structural rivet excels in securely joining oversized, irregular, or misaligned holes. Made of high-quality Aluminum Alloy (ALmg 5) or Equivalent, it offers exceptional hole-fill capabilities and features an internal-locking system for added strength. With a nominal shear force of 1298 lbf and a nominal tensile force of 888 lbf, this rivet delivers reliable performance in demanding environments, including renewable energy applications such as solar frames.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
16.7 mm | 0.657 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.261 to 0.271 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
12.1 mm | 0.476 in
Nominal Dimensions Minimum Grip Range
4.1 mm | 0.161 in
Nominal Forces Nominal Shear Force
590 kgf | 1298 lbf
Nominal Forces Nominal Tensile Force
404 kgf | 888 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
