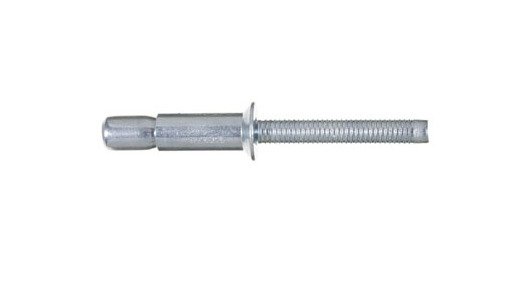

Ornilock Aluminum 23.0mm 100 Degree Countersunk Head Rivet
Ornilock Aluminum 23.0mm 100 Degree Countersunk Head Rivet
SKU:ORN-ed997f
Secure and durable Ornilock Aluminum 23.0mm rivet for oversized holes. Ideal for Solar Frames.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock Aluminum 23.0mm 100 Degree Countersunk Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock Aluminum 23.0mm 100 Degree Countersunk Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

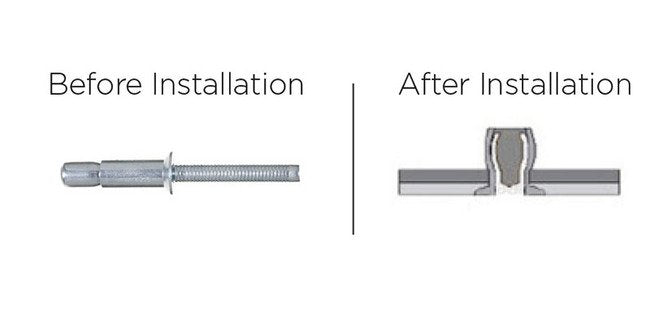

The Ornilock Aluminum 23.0mm 100 Degree Countersunk Head Rivet is a structural fastener designed for oversized, irregular, or misaligned holes. With excellent hole-fill capabilities and an internal-locking system, it provides secure and flush installations. Made of Aluminum Alloy, it meets stringent durability requirements, including a Nominal Shear Force of 590 kgf and a Nominal Tensile Force of 404 kgf. Ideal for Solar Frames and other renewable energy applications, it offers a multi-grip design for reliable performance.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
23.0 mm | 0.906 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.261 to 0.271 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
18.4 mm | 0.724 in
Nominal Dimensions Minimum Grip Range
10.6 mm | 0.417 in
Nominal Forces Nominal Shear Force
590 kgf | 1298 lbf
Nominal Forces Nominal Tensile Force
404 kgf | 888 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
