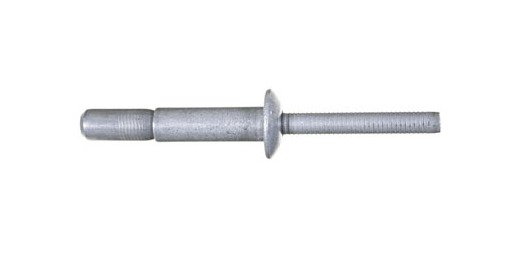

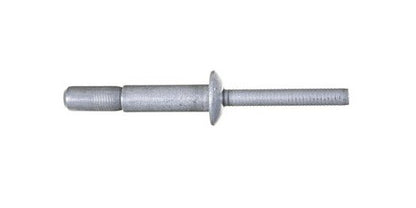

Ornilock Aluminum 6.5mm Protruding Head Rivet
Ornilock Aluminum 6.5mm Protruding Head Rivet
SKU:ORN-ea42d0
High-performance 6.5mm aluminum rivet with superior hole-fill capabilities for structural applications. Ideal for oversized or irregular holes.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornilock Aluminum 6.5mm Protruding Head Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornilock Aluminum 6.5mm Protruding Head Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornilock Aluminum Protruding Head Rivet features a 6.5mm diameter and 14.2mm body length, providing exceptional hole-fill capabilities for oversized or irregular holes. With a maximum grip range of 9.5mm, this structural rivet offers a nominal shear force of 590 kgf and tensile force of 404 kgf. Ideal for Solar Frames in renewable energy applications, it meets stringent industry standards for durability and reliability.
Product Specifications
Applications Renewable Energy Application

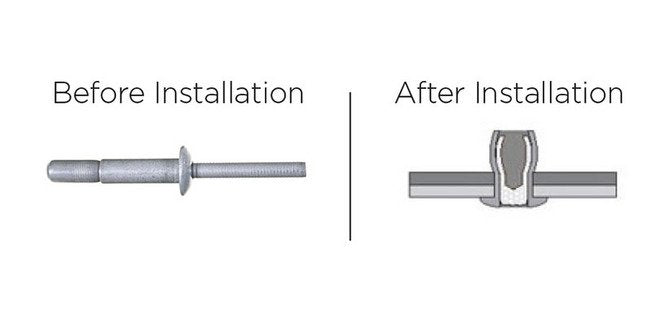

Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
14.2 mm | 0.559 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
590 kgf | 1300 lbf
Nominal Forces Nominal Tensile Force
404 kgf | 890 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
