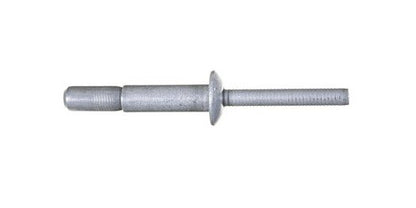

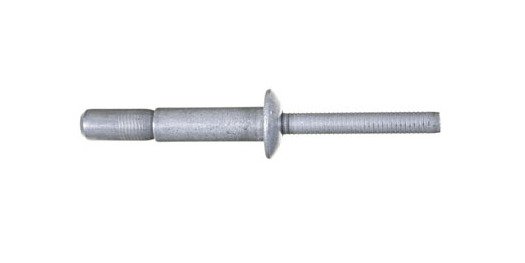

Ornilock Aluminum Protruding Head Rivet - 4.8mm x 10.5mm
Ornilock Aluminum Protruding Head Rivet - 4.8mm x 10.5mm
SKU:ORN-aa5c98
High-strength Ornilock Aluminum Rivet for structural applications in oversized holes. Secure, durable, and versatile.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock Aluminum Protruding Head Rivet - 4.8mm x 10.5mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock Aluminum Protruding Head Rivet - 4.8mm x 10.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

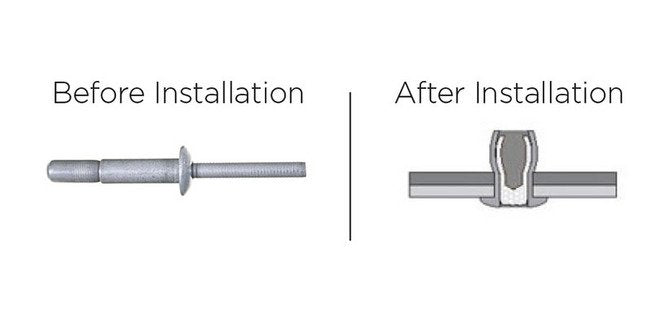

The Ornilock Aluminum Protruding Head Rivet is a versatile fastener designed for structural applications in oversized, irregular, or misaligned holes. With exceptional hole-fill capabilities and an internal-locking system, this rivet ensures a secure and flush fit. Its aluminum alloy construction and natural finish guarantee durability and corrosion resistance. Engineered for demanding environments, this rivet offers high shear and tensile strength, making it ideal for renewable energy applications like solar frames.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
10.5 mm | 0.413 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
6.9 mm | 0.272 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
275 kgf | 606 lbf
Nominal Forces Nominal Tensile Force
230 kgf | 507 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
