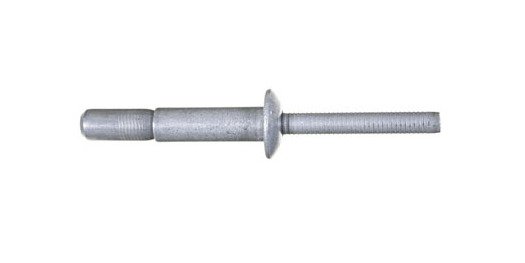

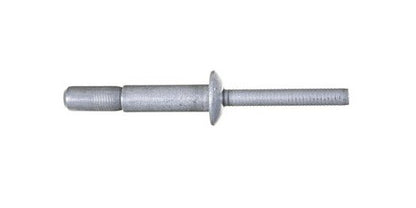

Ornilock Aluminum Protruding Head Rivet - 4.8mm x 14.5mm
Ornilock Aluminum Protruding Head Rivet - 4.8mm x 14.5mm
SKU:ORN-0bc49b
High-quality Ornilock Aluminum Protruding Head Rivet for secure structural fastening in diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock Aluminum Protruding Head Rivet - 4.8mm x 14.5mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock Aluminum Protruding Head Rivet - 4.8mm x 14.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

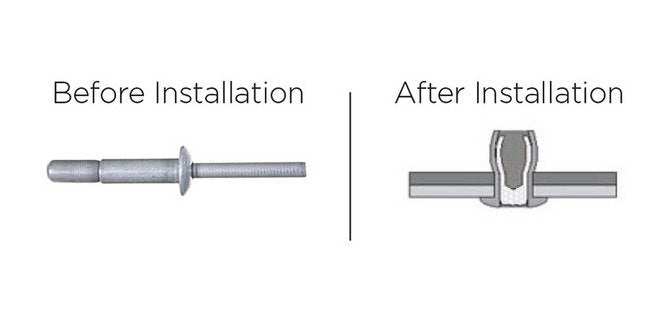

The Ornilock Aluminum Protruding Head Rivet is a versatile fastener perfect for structural applications with oversized, irregular, or misaligned holes. Made from high-quality aluminum alloy, it offers excellent hole-fill capabilities and a secure internal-locking system. With a nominal shear force of 275 kgf and nominal tensile force of 230 kgf, this rivet ensures reliable performance in demanding environments. Ideal for solar frames and other renewable energy applications, the Ornilock rivet meets stringent industry standards for durability and precision.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
275 kgf | 606 lbf
Nominal Forces Nominal Tensile Force
230 kgf | 507 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
