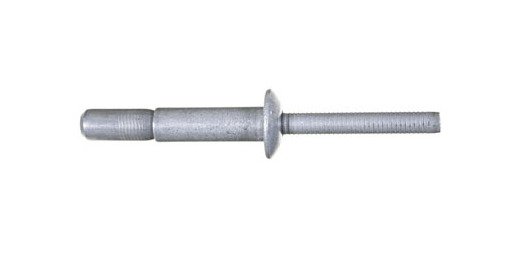

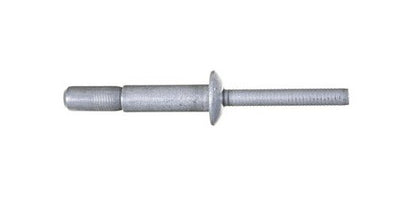

Ornilock Aluminum Protruding Head Rivet - 4.8mm x 14.5mm
Ornilock Aluminum Protruding Head Rivet - 4.8mm x 14.5mm
SKU:ORN-32a4a8
Versatile Ornilock Aluminum Rivet with exceptional hole-fill capabilities and secure internal-locking system.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock Aluminum Protruding Head Rivet - 4.8mm x 14.5mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock Aluminum Protruding Head Rivet - 4.8mm x 14.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

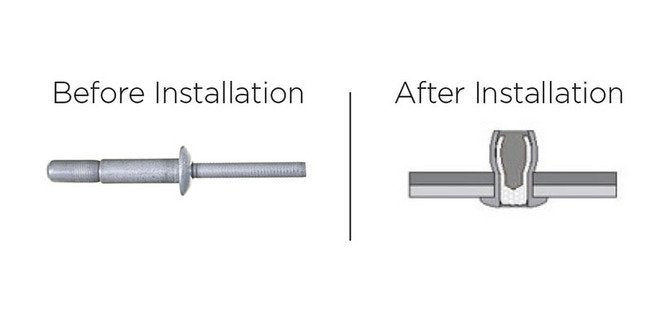

The Ornilock Aluminum Protruding Head Rivet is a versatile fastener designed for structural applications with exceptional hole-fill capabilities. Ideal for oversized, irregular, or misaligned holes, this rivet features a multi-grip design and an internal-locking system for secure fastening. With a nominal shear force of 275 kgf and a tensile force of 230 kgf, it ensures reliable performance in demanding conditions. The aluminum alloy construction and flush break head design make it suitable for various applications, including solar frames in renewable energy projects.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
5.4 mm | 0.213 in
Nominal Forces Nominal Shear Force
275 kgf | 606 lbf
Nominal Forces Nominal Tensile Force
230 kgf | 507 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
