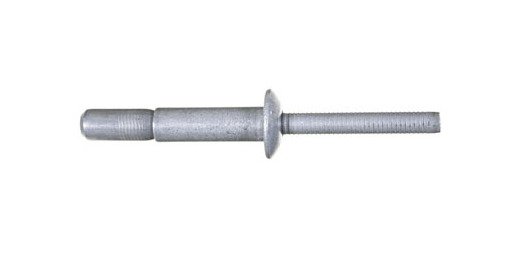

Ornilock Aluminum Protruding Head Rivet - 6.5mm x 20.5mm
Ornilock Aluminum Protruding Head Rivet - 6.5mm x 20.5mm
SKU:ORN-b1cf93
High-strength Ornilock Aluminum Rivet - Ideal for structural applications with oversize hole compatibility
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock Aluminum Protruding Head Rivet - 6.5mm x 20.5mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock Aluminum Protruding Head Rivet - 6.5mm x 20.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

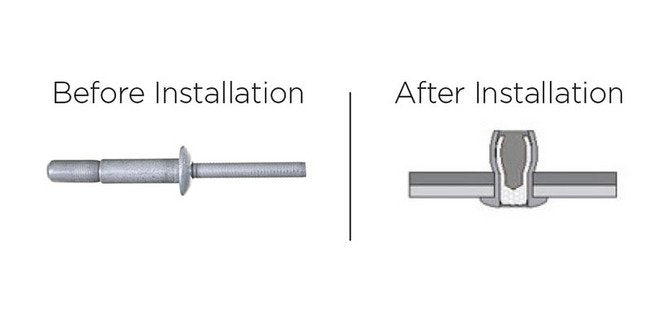

The Ornilock Aluminum 6.5mm x 20.5mm Protruding Head Rivet is a high-strength, multi-grip fastening solution designed for structural applications. With excellent hole-fill capabilities, this rivet is ideal for oversized, irregular, or misaligned holes in side frames, front frames, hinges, axes, and locking systems. Its internal-locking system ensures a secure flush break and reliable performance. This rivet meets stringent quality standards, including Federal/DoD requirements, making it a trusted choice for institutions and government projects.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
590 kgf | 1300 lbf
Nominal Forces Nominal Tensile Force
404 kgf | 890 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
