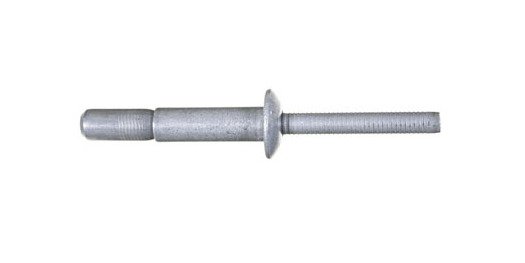

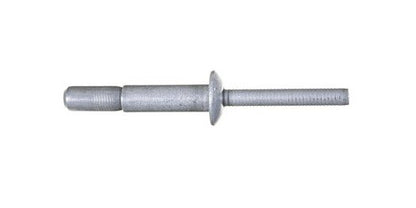

Ornilock Aluminum Protruding Head Rivet (9.8mm x 21.0mm)
Ornilock Aluminum Protruding Head Rivet (9.8mm x 21.0mm)
SKU:ORN-fa17d8
Versatile Ornilock Aluminum Rivet for structural applications. 9.8mm diameter, 21.0mm body length, ideal for oversized holes and solar frames.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornilock Aluminum Protruding Head Rivet (9.8mm x 21.0mm)
$45.99
Quantity: 1
Claim Your Seller Account
Ornilock Aluminum Protruding Head Rivet (9.8mm x 21.0mm)
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornilock Aluminum Protruding Head Rivet is a versatile fastening solution designed for structural applications requiring excellent hole-fill capabilities. With a 9.8mm diameter and 21.0mm body length, this rivet is ideal for oversized or misaligned holes. Crafted from durable Aluminum Alloy, it offers a flush break and features an internal-locking system for enhanced strength. With a nominal shear force of 1338 kgf and tensile force of 862 kgf, this rivet ensures reliable performance in challenging environments, making it perfect for solar frames in renewable energy applications.
Product Specifications
Applications Renewable Energy Application

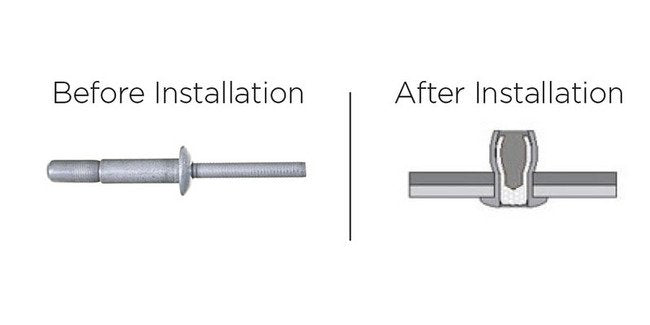

Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
21.0 mm | 0.827 in
Nominal Dimensions Diameter
9.8 mm | 3/8 in
Nominal Dimensions Drillhole Size
10.0 to 10.4 mm | 0.394 to 0.409 in
Nominal Dimensions Head Diameter
19.0 mm | 0.748 in
Nominal Dimensions Head Thickness
4.5 mm | 0.177 in
Nominal Dimensions Mandrel Diameter
5.8 mm | 0.230 in
Nominal Dimensions Maximum Grip Range
14.5 mm | 0.571 in
Nominal Dimensions Minimum Grip Range
3.5 mm | 0.138 in
Nominal Forces Nominal Shear Force
1338 kgf | 2950 lbf
Nominal Forces Nominal Tensile Force
862 kgf | 1901 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
