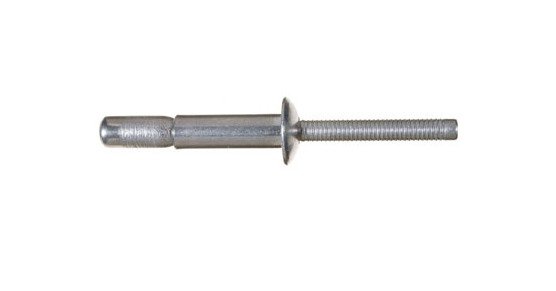

Ornilock Protruding Head Rivet 6.5mm Stainless Steel AISI 304
Ornilock Protruding Head Rivet 6.5mm Stainless Steel AISI 304
SKU:ORN-234ee1
High-quality 6.5mm Stainless Steel Protruding Head Rivet for structural applications. Ideal for oversized or misaligned holes.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornilock Protruding Head Rivet 6.5mm Stainless Steel AISI 304
$45.99
Quantity: 1
Claim Your Seller Account
Ornilock Protruding Head Rivet 6.5mm Stainless Steel AISI 304
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

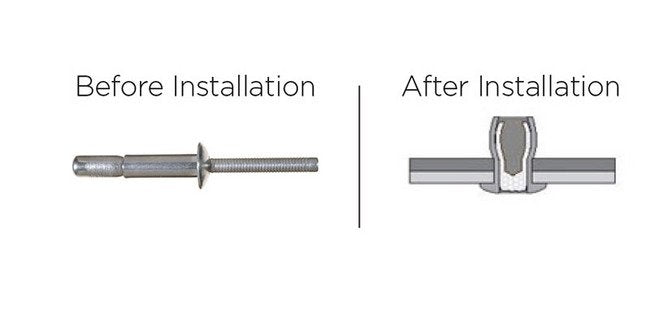

The Ornilock Stainless Steel Protruding Head Rivet is designed for structural applications with exceptional hole-fill capabilities, ideal for oversized, irregular, or misaligned holes. Made of high-quality Austenitic Stainless Steel AISI 304, it offers a secure internal-locking system and a flush break feature. With a diameter of 6.5mm and a body length of 14.2mm, this rivet provides a nominal shear force of 1150 kgf and a nominal tensile force of 910 kgf, making it perfect for various applications, including renewable energy installations like solar frames.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
14.2 mm | 0.559 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
1150 kgf | 2530 lbf
Nominal Forces Nominal Tensile Force
910 kgf | 2002 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
