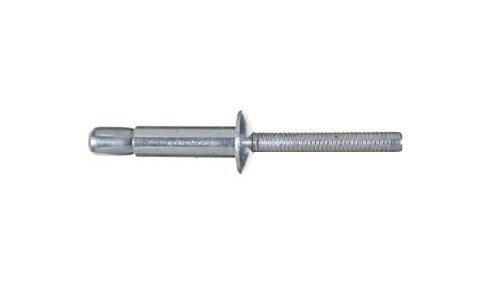

Ornilock Protruding Head Rivet 6.5mm x 14.2mm Steel
Ornilock Protruding Head Rivet 6.5mm x 14.2mm Steel
SKU:ORN-1d3425
Secure oversized holes with precision using Ornilock Protruding Head Rivet. Low carbon steel, Zinc Plated Chromium VI Free Passivation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock Protruding Head Rivet 6.5mm x 14.2mm Steel
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock Protruding Head Rivet 6.5mm x 14.2mm Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

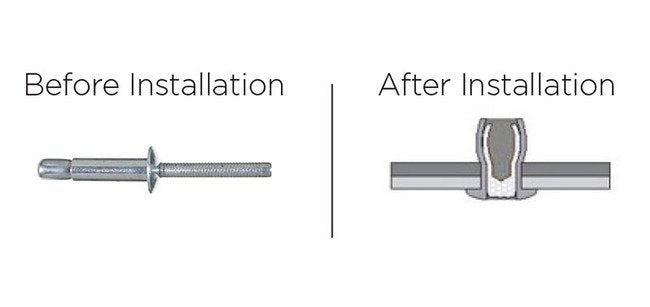

Experience reliable fastening with the Ornilock Protruding Head Rivet, designed for structural integrity in oversized or misaligned holes. The low carbon steel body with Zinc Plated Chromium VI Free Passivation ensures durability. With a nominal shear force of 1250 kgf and tensile force of 1000 kgf, this rivet meets stringent industry standards for secure joints.
Product Specifications
Nominal Dimensions Body Length
14.2 mm | 0.559 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.261 to 0.272 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
1250 kgf | 2750 lbf
Nominal Forces Nominal Tensile Force
1000 kgf | 2200 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free Passivation
Technical Specs Mandrel Material
Medium Carbon Steel
