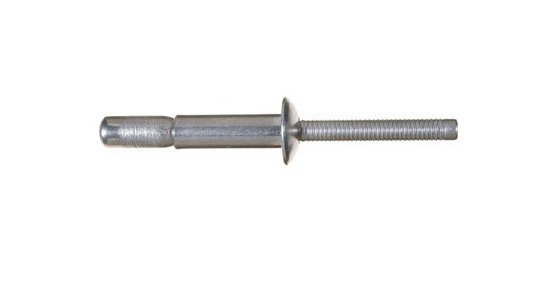

Ornilock Protruding Head Rivet, 7.8mm x 21.0mm, Stainless Steel AISI 304
Ornilock Protruding Head Rivet, 7.8mm x 21.0mm, Stainless Steel AISI 304
SKU:ORN-d9a25d
High-strength Ornilock Stainless Steel Rivet, 7.8mm x 21.0mm, for secure fastening in structural applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornilock Protruding Head Rivet, 7.8mm x 21.0mm, Stainless Steel AISI 304
$49.99
Quantity: 1
Claim Your Seller Account
Ornilock Protruding Head Rivet, 7.8mm x 21.0mm, Stainless Steel AISI 304
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

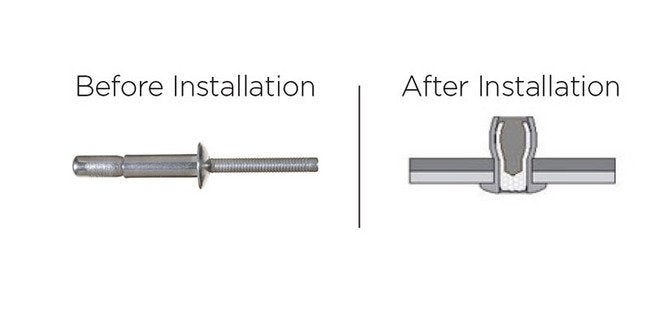

The Ornilock Stainless Steel Protruding Head Rivet is a versatile fastening solution designed for structural integrity. With a 7.8mm diameter and 21.0mm body length, this rivet excels in filling oversized, irregular, or misaligned holes, ensuring a secure and lasting connection. Crafted from Austenitic Stainless Steel AISI 304, it offers exceptional strength and corrosion resistance, ideal for demanding applications in various industries. With a shear force of 1800 kgf and a tensile force of 1200 kgf, this rivet guarantees reliable performance in renewable energy applications, including solar frames.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
21.0 mm | 0.827 in
Nominal Dimensions Diameter
7.8 mm | 5/16 in
Nominal Dimensions Drillhole Size
8.0 to 8.3 mm | 0.315 to 0.327 in
Nominal Dimensions Head Diameter
16 mm | 0.630 in
Nominal Dimensions Head Thickness
3.5 mm | 0.140 in
Nominal Dimensions Mandrel Diameter
5.10 mm | 0.200 in
Nominal Dimensions Maximum Grip Range
15.0 mm | 0.591 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
1800 kgf | 3960 lbf
Nominal Forces Nominal Tensile Force
1200 kgf | 2640 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
