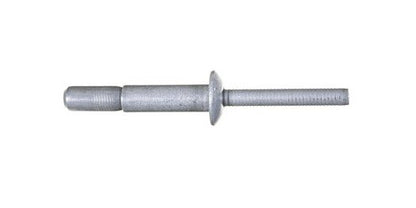

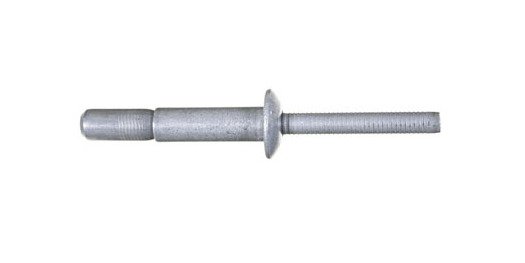

Ornilock Protruding Head Rivet - Aluminum Alloy
Ornilock Protruding Head Rivet - Aluminum Alloy
SKU:ORN-b7b2a4
High-quality Ornilock Aluminum Rivet with 6.5mm diameter and 20.5mm body length. Ideal for oversized holes. Shear force: 590kgf, Tensile force: 404kgf.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Ornilock Protruding Head Rivet - Aluminum Alloy
$34.99
Quantity: 1
Claim Your Seller Account
Ornilock Protruding Head Rivet - Aluminum Alloy
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

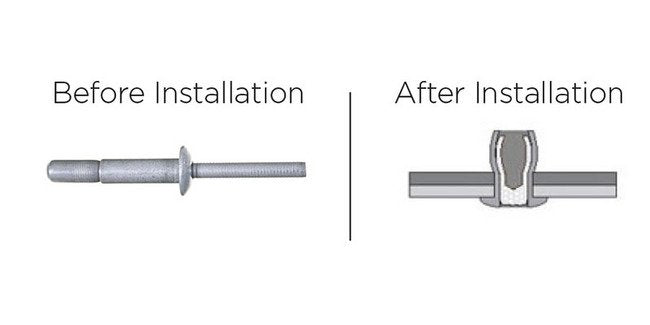

The Ornilock Aluminum 6.5mm Protruding Head Rivet is designed with excellent hole-fill capabilities, perfect for oversized, irregular, or misaligned holes in structural applications. With a body length of 20.5mm, this rivet ensures a secure and tight fit, featuring an internal-locking system for added strength. It meets strict industry standards for renewable energy applications like solar frames, offering a shear force of 590 kgf and a tensile force of 404 kgf.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
8.9 mm | 0.350 in
Nominal Forces Nominal Shear Force
590 kgf | 1300 lbf
Nominal Forces Nominal Tensile Force
404 kgf | 890 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (ALmg 5) or Equivalent
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy 7075 or Equivalent
