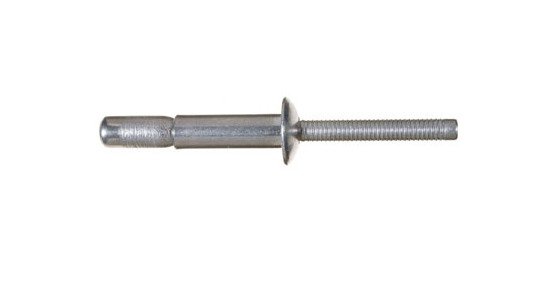

Ornilock Protruding Head Rivet, Stainless Steel 4.8mm x 14.5mm
Ornilock Protruding Head Rivet, Stainless Steel 4.8mm x 14.5mm
SKU:ORN-b97b7a
High-performance Ornilock Protruding Head Rivet, Stainless Steel 4.8mm x 14.5mm. Ideal for structural applications, meets top procurement standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock Protruding Head Rivet, Stainless Steel 4.8mm x 14.5mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock Protruding Head Rivet, Stainless Steel 4.8mm x 14.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

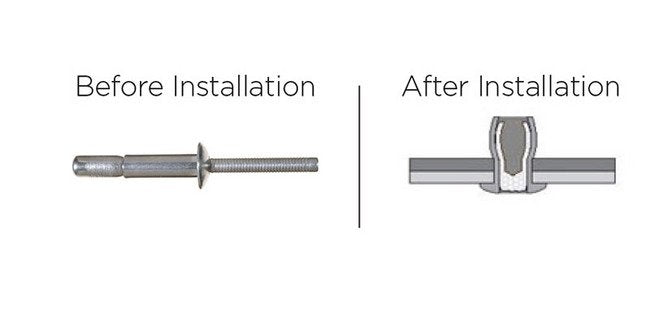

The Ornilock Stainless Steel Protruding Head Rivet is a reliable fastener designed for structural applications. With a 4.8mm diameter and 14.5mm body length, it offers exceptional hole-fill capabilities, perfect for oversized or irregular holes. Made from high-quality Austenitic Stainless Steel AISI 304, this rivet ensures durability and corrosion resistance. Ideal for solar frames and renewable energy applications, it meets stringent procurement standards, including Federal/DoD, GSA, FAR, and DLA requirements.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
5.4 mm | 0.213 in
Nominal Forces Nominal Shear Force
590 kgf | 1298 lbf
Nominal Forces Nominal Tensile Force
430 kgf | 946 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
