Ornilock Protruding Head Rivet, Stainless Steel 6.5mm x 20.5mm
Ornilock Protruding Head Rivet, Stainless Steel 6.5mm x 20.5mm
SKU:ORN-8fdc2e
Ornilock Stainless Steel Protruding Head Rivet for structural integrity and precise hole filling. Ideal for renewable energy applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornilock Protruding Head Rivet, Stainless Steel 6.5mm x 20.5mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornilock Protruding Head Rivet, Stainless Steel 6.5mm x 20.5mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

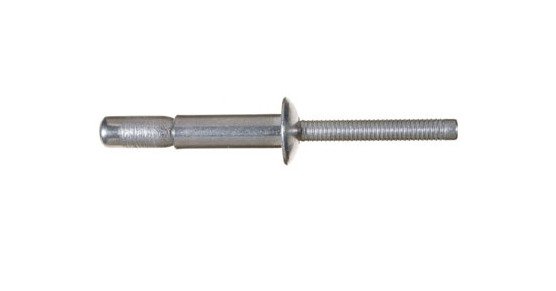

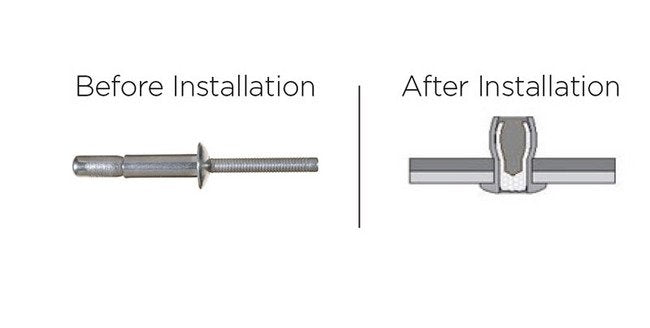

The Ornilock Stainless Steel Protruding Head Rivet is engineered for structural integrity and optimal hole-fill capabilities, ideal for oversized, irregular, or misaligned holes. Made of AISI 304 stainless steel, it offers exceptional strength and corrosion resistance. With a mandrel diameter of 4.0mm, this rivet ensures a secure internal-locking system for various applications, including solar frames in renewable energy projects. Meeting stringent industry standards, this rivet delivers reliable performance in demanding environments.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
1150 kgf | 2530 lbf
Nominal Forces Nominal Tensile Force
910 kgf | 2002 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
