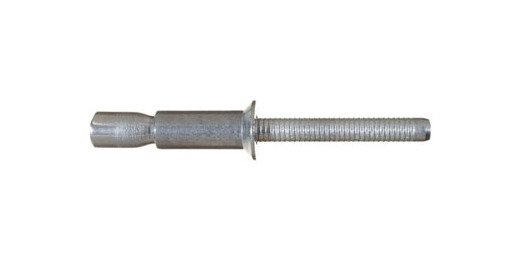

Ornilock Stainless Steel 100 Degree Countersunk Head Rivet - 12.3mm Body Length
Ornilock Stainless Steel 100 Degree Countersunk Head Rivet - 12.3mm Body Length
SKU:ORN-c3f0c7
Premium Ornilock Stainless Steel Rivet - Strong, Durable & Reliable. Ideal for Structural Applications. Nominal Shear Force: 590 kgf.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornilock Stainless Steel 100 Degree Countersunk Head Rivet - 12.3mm Body Length
$39.99
Quantity: 1
Claim Your Seller Account
Ornilock Stainless Steel 100 Degree Countersunk Head Rivet - 12.3mm Body Length
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornilock Stainless Steel 100 Degree Countersunk Head Rivet in 12.3mm body length is a high-quality fastening solution designed for structural applications. Crafted from AISI 304 Austenitic Stainless Steel, it offers exceptional durability and corrosion resistance. With a nominal shear force of 590 kgf and nominal tensile force of 430 kgf, this rivet ensures reliable performance in demanding environments. Ideal for renewable energy applications like solar frames, its internal-locking system accommodates large, irregular, or misaligned holes, providing a secure and flush finish.
Product Specifications
Applications Renewable Energy Application

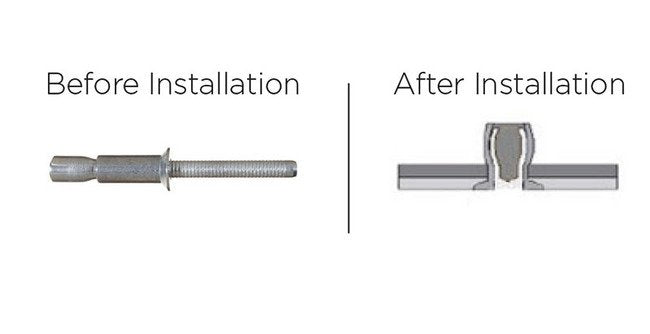

Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
12.3 mm | 0.484 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
8.6 mm | 0.339 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
8.4 mm | 0.331 in
Nominal Dimensions Minimum Grip Range
3.2 mm | 0.126 in
Nominal Forces Nominal Shear Force
590 kgf | 1298 lbf
Nominal Forces Nominal Tensile Force
430 kgf | 946 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
