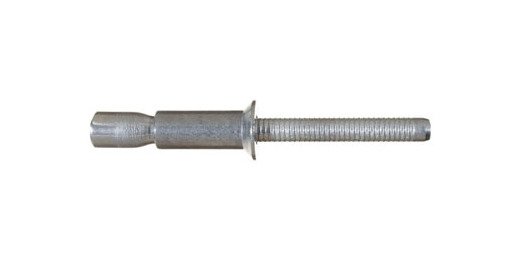

Ornilock Stainless Steel 16.5mm 100° Countersunk Head Rivet
Ornilock Stainless Steel 16.5mm 100° Countersunk Head Rivet
SKU:ORN-548b56
High-strength Ornilock Stainless Steel Rivet for structural applications with exceptional hole-fill capabilities and robust corrosion resistance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Ornilock Stainless Steel 16.5mm 100° Countersunk Head Rivet
$79.99
Quantity: 1
Claim Your Seller Account
Ornilock Stainless Steel 16.5mm 100° Countersunk Head Rivet
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornilock Stainless Steel 16.5mm 100° Countersunk Head Rivet is a high-quality fastening solution designed for structural applications requiring exceptional hole-fill capabilities. Crafted from Austenitic Stainless Steel AISI 304, it offers superior strength and corrosion resistance, meeting stringent industry standards. With a nominal shear force of 590 kgf and nominal tensile force of 430 kgf, this rivet ensures durable and reliable connections. Ideal for large, irregular, or misaligned holes, this rivet is perfect for renewable energy applications like solar frames.
Product Specifications
Applications Renewable Energy Application

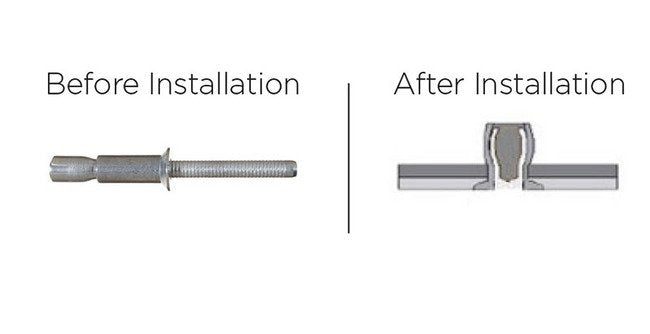

Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
16.5 mm | 0.650 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
8.6 mm | 0.339 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
7.8 mm | 0.307 in
Nominal Forces Nominal Shear Force
590 kgf | 1298 lbf
Nominal Forces Nominal Tensile Force
430 kgf | 946 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
