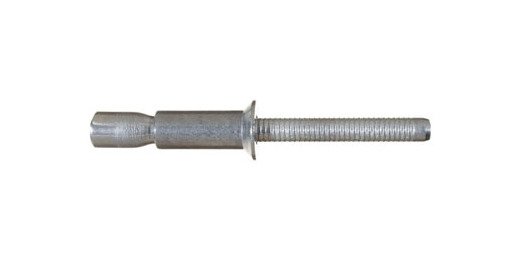

Ornilock Stainless Steel 23.0mm Body Length Rivet
Ornilock Stainless Steel 23.0mm Body Length Rivet
SKU:ORN-8b53d4
Premium 23.0mm Stainless Steel Rivet with 100° Countersunk Head for secure and durable fastening in structural applications. Ideal for oversized, irregular, or misaligned holes.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornilock Stainless Steel 23.0mm Body Length Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Ornilock Stainless Steel 23.0mm Body Length Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

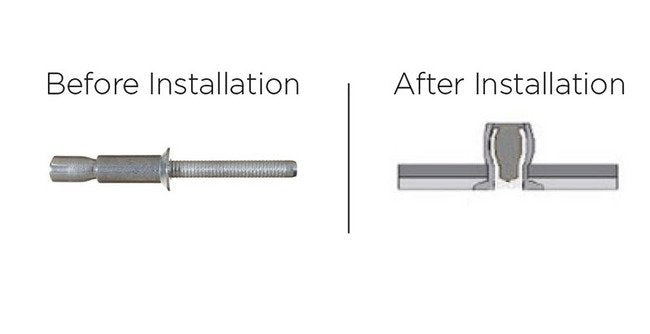

The Ornilock Stainless Steel 23.0mm Body Length Rivet is a premium fastening solution designed for structural applications requiring secure and durable connections. Crafted from Austenitic Stainless Steel AISI 304, it offers exceptional strength and corrosion resistance. With a 100 Degree Countersunk Head and internal-locking system, this rivet ensures a flush break and excellent hole-fill capabilities, making it ideal for oversized, irregular, or misaligned holes. It meets stringent industry standards for renewable energy applications, especially in solar frame installations, providing reliable fastening for large structures.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
23.0 mm | 0.906 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
10.0 mm | 0.394 in
Nominal Dimensions Head Thickness
2.00 mm | 0.079 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
18.4 mm | 0.724 in
Nominal Dimensions Minimum Grip Range
10.6 mm | 0.417 in
Nominal Forces Nominal Shear Force
1150 kgf | 2530 lbf
Nominal Forces Nominal Tensile Force
910 kgf | 2002 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
