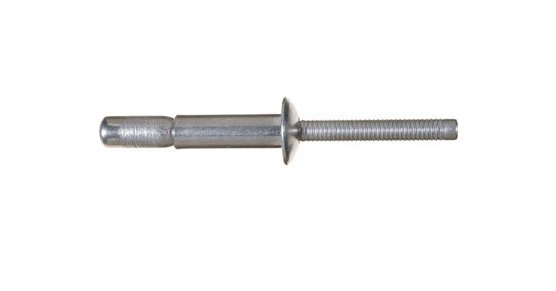

Ornilock Stainless Steel Protruding Head Rivet - 4.8mm x 10.5mm
Ornilock Stainless Steel Protruding Head Rivet - 4.8mm x 10.5mm
SKU:ORN-02c848
High-performance Ornilock Stainless Steel Rivet - Ideal for structural applications, resilient and compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornilock Stainless Steel Protruding Head Rivet - 4.8mm x 10.5mm
$49.99
Quantity: 1
Claim Your Seller Account
Ornilock Stainless Steel Protruding Head Rivet - 4.8mm x 10.5mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

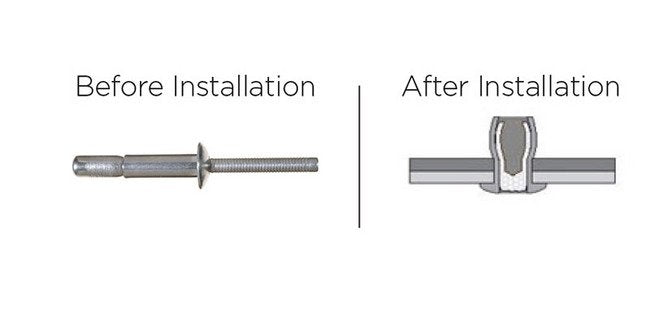

The Ornilock Stainless Steel Protruding Head Rivet is a high-quality fastener designed for structural applications in various industries. Made of AISI 304 stainless steel, it offers exceptional hole-fill capabilities, perfect for oversized or irregular holes. With a nominal shear force of 590 kgf and nominal tensile force of 430 kgf, this rivet ensures secure and reliable connections. Ideal for renewable energy applications like solar frames, this rivet excels in providing a strong grip and flush break, meeting stringent industry standards.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
10.5 mm | 0.413 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
6.9 mm | 0.272 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
590 kgf | 1298 lbf
Nominal Forces Nominal Tensile Force
430 kgf | 946 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
