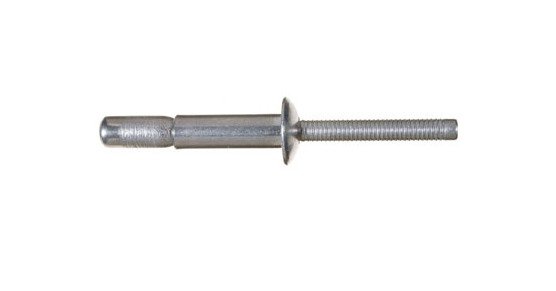

Ornilock Stainless Steel Protruding Head Rivet - 4.8mm x 14.5mm
Ornilock Stainless Steel Protruding Head Rivet - 4.8mm x 14.5mm
SKU:ORN-f040a5
High-strength Ornilock Stainless Steel Rivet - Ideal for oversized holes, with exceptional shear and tensile force. Meets govt. standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Ornilock Stainless Steel Protruding Head Rivet - 4.8mm x 14.5mm
$24.99
Quantity: 1
Claim Your Seller Account
Ornilock Stainless Steel Protruding Head Rivet - 4.8mm x 14.5mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornilock Stainless Steel Protruding Head Rivet in 4.8mm diameter and 14.5mm body length is a high-quality fastening solution designed for structural integrity in challenging applications. Crafted from AISI 304 stainless steel, it offers exceptional strength with 590kgf shear force and 430kgf tensile force. Ideal for oversized or irregular holes, this rivet ensures a secure fit and lasting durability. Perfect for renewable energy applications like solar frames, its internal-locking system and flush break feature meet stringent government procurement standards.
Product Specifications
Applications Renewable Energy Application

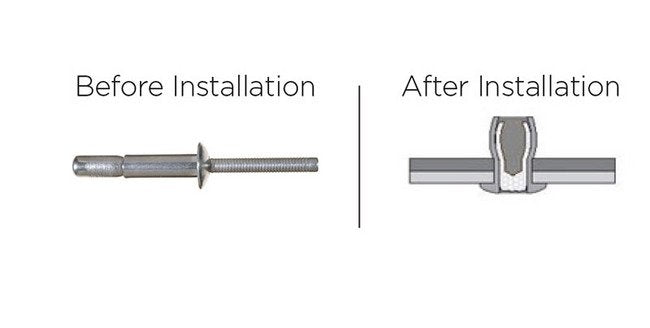

Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
14.5 mm | 0.571 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
2.1 mm | 0.083 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
590 kgf | 1298 lbf
Nominal Forces Nominal Tensile Force
430 kgf | 946 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
