Ornilock Stainless Steel Protruding Head Rivet - 6.5mm x 20.5mm
Ornilock Stainless Steel Protruding Head Rivet - 6.5mm x 20.5mm
SKU:ORN-b2eb39
High-quality Ornilock Stainless Steel Protruding Head Rivet for structural applications, ideal for renewable energy projects.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornilock Stainless Steel Protruding Head Rivet - 6.5mm x 20.5mm
$59.99
Quantity: 1
Claim Your Seller Account
Ornilock Stainless Steel Protruding Head Rivet - 6.5mm x 20.5mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

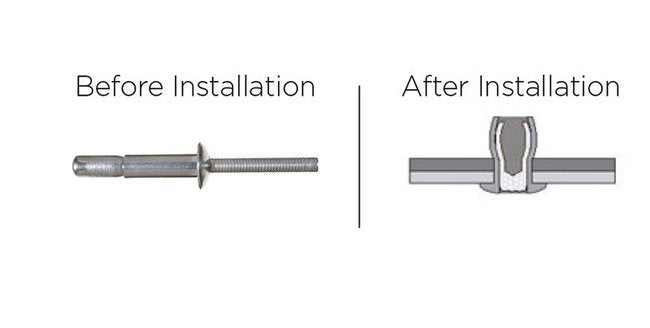

The Ornilock Stainless Steel Protruding Head Rivet is a high-quality fastener designed for structural applications, featuring excellent hole-fill capabilities and an internal-locking system. Made of Austenitic Stainless Steel AISI 304, it ensures durability and strength for long-lasting performance. With a nominal shear force of 1150 kgf and a tensile force of 910 kgf, this rivet is ideal for renewable energy applications like solar frames, meeting the stringent requirements of oversized, irregular, or misaligned holes.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
20.5 mm | 0.807 in
Nominal Dimensions Diameter
6.5 mm | 1/4 in
Nominal Dimensions Drillhole Size
6.62 to 6.9 mm | 0.260 to 0.271 in
Nominal Dimensions Head Diameter
13.0 mm | 0.512 in
Nominal Dimensions Head Thickness
2.8 mm | 0.110 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
15.9 mm | 0.626 in
Nominal Dimensions Minimum Grip Range
8.9 mm | 0.350 in
Nominal Forces Nominal Shear Force
1150 kgf | 2530 lbf
Nominal Forces Nominal Tensile Force
910 kgf | 2002 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
1500
Technical Specs Head Style
Protruding
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Austenitic Stainless Steel American Iron and Steel Institute (AISI) 304
