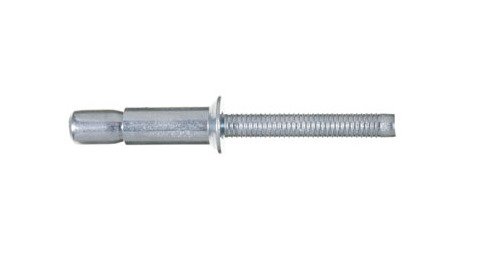

Ornilock Steel 12.3mm Countersunk Head Rivet
Ornilock Steel 12.3mm Countersunk Head Rivet
SKU:ORN-2b70d3
High-strength Ornilock Steel 12.3mm Rivet for structural applications. Flush break & internal-locking system. Ideal for irregular holes.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornilock Steel 12.3mm Countersunk Head Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornilock Steel 12.3mm Countersunk Head Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornilock Steel 12.3mm Countersunk Head Rivet is a high-strength fastening solution designed for structural applications. Made of low carbon steel with a zinc-plated chromium VI-free finish, it offers exceptional hole-fill capabilities, perfect for oversized, irregular, or misaligned holes. With a 100-degree countersunk head, this multi-grip rivet ensures a flush break and features an internal-locking system for added security. Ideal for hinges, axles, locking systems, and renewable energy applications like solar frames, this rivet delivers a nominal shear force of 630 kgf and a nominal tensile force of 545 kgf.
Product Specifications
Applications Renewable Energy Application
Solar FramesThis extra-large diameter, Ornilock, fastener is a multi-grip, structural rivet that features an internal-locking system making it ideal for large, irregular or misaligned holes.
Nominal Dimensions Body Length
12.3 mm | 0.484 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 to 5.1 mm | 0.192 to 0.200 in
Nominal Dimensions Head Diameter
8.6 mm | 0.339 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
3.0 mm | 0.118 in
Nominal Dimensions Maximum Grip Range
8.4 mm | 0.331 in
Nominal Dimensions Minimum Grip Range
3.2 mm | 0.126 in
Nominal Forces Nominal Shear Force
630 kgf | 1386 lbf
Nominal Forces Nominal Tensile Force
545 kgf | 1199 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornilock | Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
100 Degree Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Medium Carbon Steel
